Yes. Custom cutting length, cable length, connector type and packing can be provided for OEM projects.

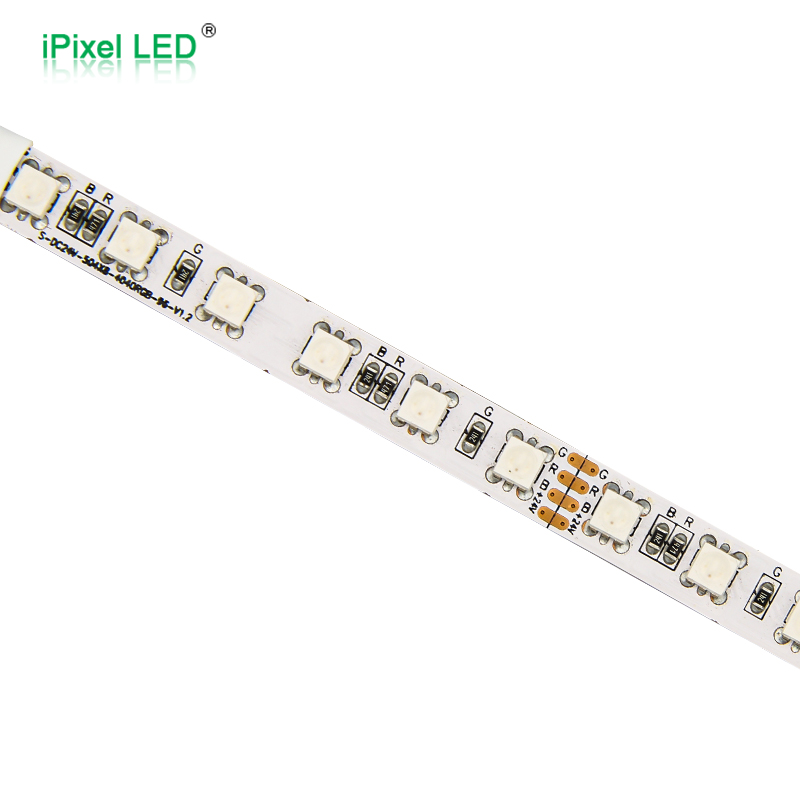

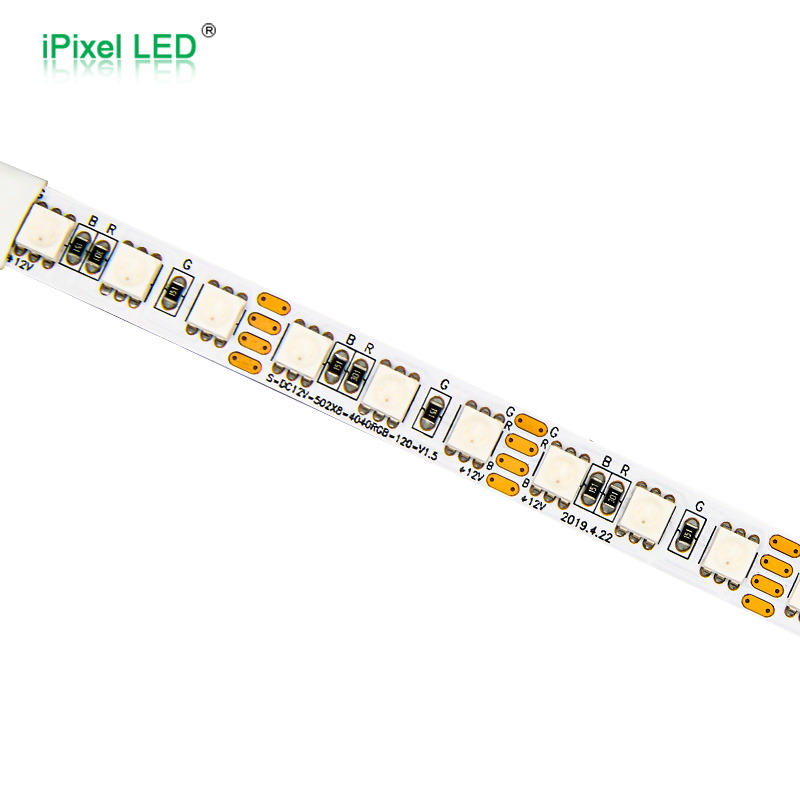

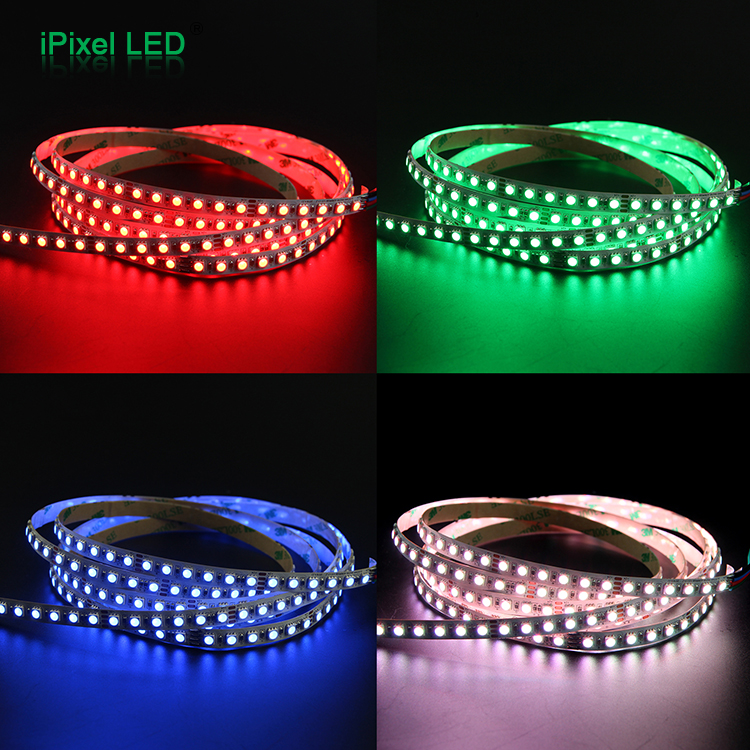

RGB SMD4040 LED Strip
- This is a PWM control RGB color LED strip without Pixel
- 96/120pcs SMD 4040 RGB LED per meter
- 5meters/reel, 8mm PCB width
- DC12/24V constant voltage operation

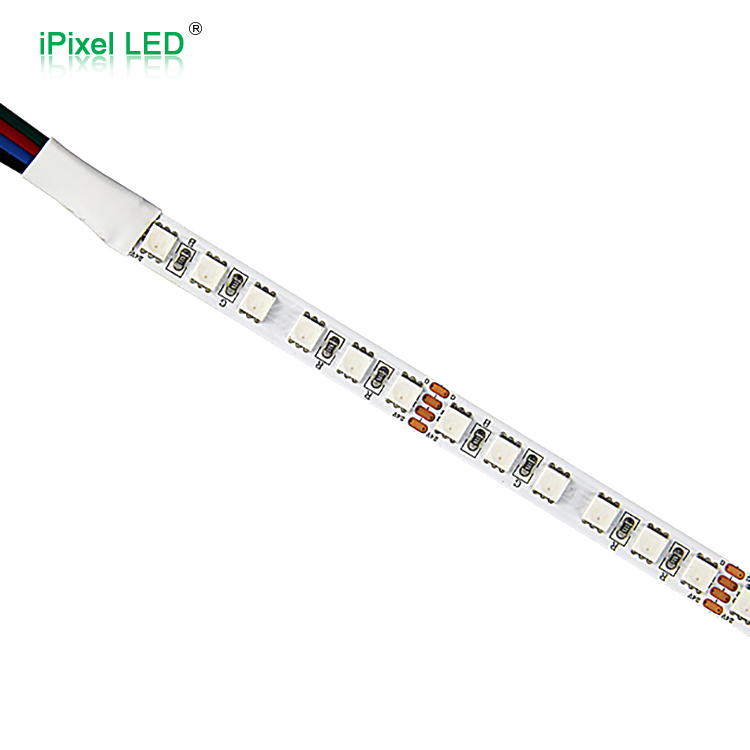

- Both ends have 4pin bare wires for powering
- 3M tape attached on backside of FPC
DC12V/24V96/240LEDs/m8mm WidchRGBIP20/IP64/IP65/IP67PWM
Series Overview & Key Features
Series Overview
This series features high-density SMD3535 RGB flexible strips with 240 LEDs/m, 28.8W/m power, and Ra80 for vivid color reproduction. The 12mm white FPC with 2+2oz thickened copper foil operates at DC24V to minimize voltage drop over long runs. Cuttable every 25mm (6 LEDs), standard 3m reel with custom lengths available. IP20 to IP67 ratings suit indoor and harsh outdoor environments.
Key Features
- Ultra‑high density 240 LEDs/m for superior brightness and uniform mixing.
- Ra80 high CRI for accurate color rendering.
- 2+2oz copper FPC reduces voltage drop and enhances durability.
- DC24V operation, cuttable every 25mm for flexible sizing.
- Multiple IP options (IP20–IP67) for diverse applications.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | Cutting Length | IP Rating | Lumen/m | Length |
|---|---|---|---|---|---|---|---|---|---|
| S008096TB3PZ | 96 | 12V | 14.4W | PWM | 8mm | 31.25mm/3LED | IP20/IP65 | R:159G:440 B:96lm | 5M |
| S008096TC3PZ | 96 | 24V | 14.4W | PWM | 8mm | 62.5mm/6LED | IP20/IP65 | R:159 G:440 B:96lm | 5M |
| S008120TB3PZ | 120 | 12V | 27W | PWM | 8mm | 25mm/3LED | IP20/IP65 | R:227 G:625 B:150lm | 5M |
| S008120TC3PZ | 120 | 24V | 27W | PWM | 8mm | 50mm/6LED | IP20/IP65 | R:223 G:618 B:154lm | 5M |
How to Choose
| Application Need | Recommended Voltage | Recommended IP | Notes |
|---|---|---|---|
| Indoor Dry Environment | DC12V/24V | IP20 | Cost-effective for indoor use |
| Indoor Damp Environment | DC12V/24V | IP65 | Silicone coating for moisture resistance |
| Outdoor /Harsh Environment | DC12V/24V | IP65/IP68 | Higher IP level for harsh condittion |
| Commercial/Display | DC12V/24V | IP20/IP65 | High density for better visual effect |

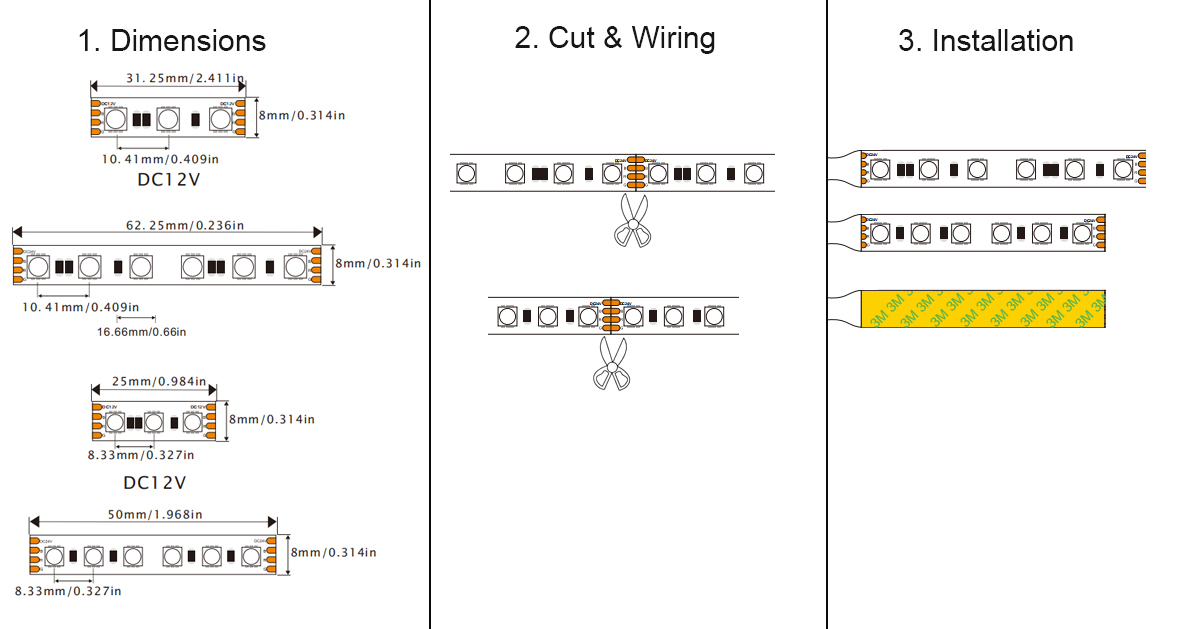

Structure & Installation
Protection, Customization & Options
| ltem | Options/Detalls | Remarks |
|---|---|---|
| IP Rating | IP20/IP65 | IP65 Sllicone Coating. |
| Color Option | RGB | Other CCts avollable onrequest. |
| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom length avallable. |
| PC Coler | White | Other PCB color available (Black). |
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Coffee Machine Lighting – Heat/Steam/Chemical Resistance & Glare-Controlled Downlight
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. IP20, IP65 and IP67 options are available depending on the selected structure and installation environment.
For longer runs, 24V usually helps reduce current and voltage drop compared with 12V.
Photometric test reports and selected certification documents can be provided according to product and project requirements.
