Coffee Machine Lighting – Heat/Steam/Chemical Resistance & Glare-Controlled Downlight

- Goal: stable, glare-controlled illumination that withstands heat, steam, and cleaning routines.

- Risks addressed: moisture ingress, material degradation, discoloration, cable/connector heat stress, and user glare.

- Deliverables: materials + sealing strategy, mounting and harness rules, validation plan, and documentation pack.

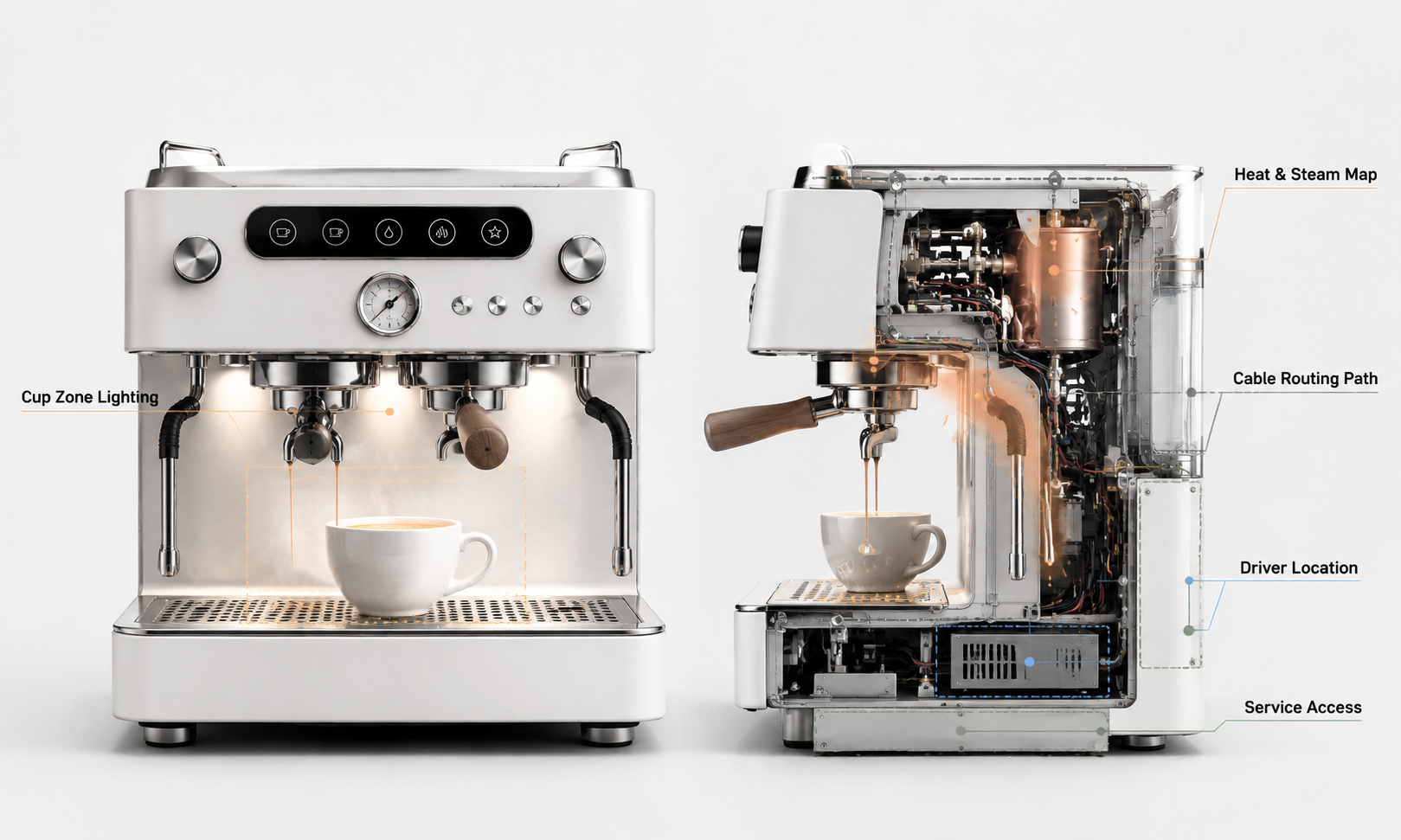

- Machine layout and lighting locations (cup zone / UI / accents)

- Heat/steam exposure map; maximum temperature near lights; cleaning chemicals used

- Target lighting effect (downlight beam, brightness, glare limits) and any camera requirements

- Power/control method and driver/controller location

- Mechanical constraints (space, cable routing, service access) and serviceability requirement

- Compliance targets and sample/volume expectations

- Early failures from steam/condensation ingress near hot zones

- Yellowing/cracking of materials from heat and chemicals

- Glare or hotspot in the cup zone affecting user experience

- Cable/connector softening or intermittent faults due to heat stress

- Difficult service replacement in tight assemblies

- Flicker under PWM/control mismatch

- **Heat management:** power density control; thermal path design; keep critical parts away from hotspots

- **Steam/moisture protection:** sealing at cable entry/end caps; avoid capillary paths; protect joints

- **Chemical resistance:** select materials and surface protection matched to cleaning agents; define cleaning boundaries

- **Glare control:** lens/diffuser selection; shielding and beam shaping for downlight window

- **Harness reliability:** heat-rated wire/jacket where needed; strain relief; connector placement away from hot/steam zones

- **Serviceability:** modular replacement approach and access planning

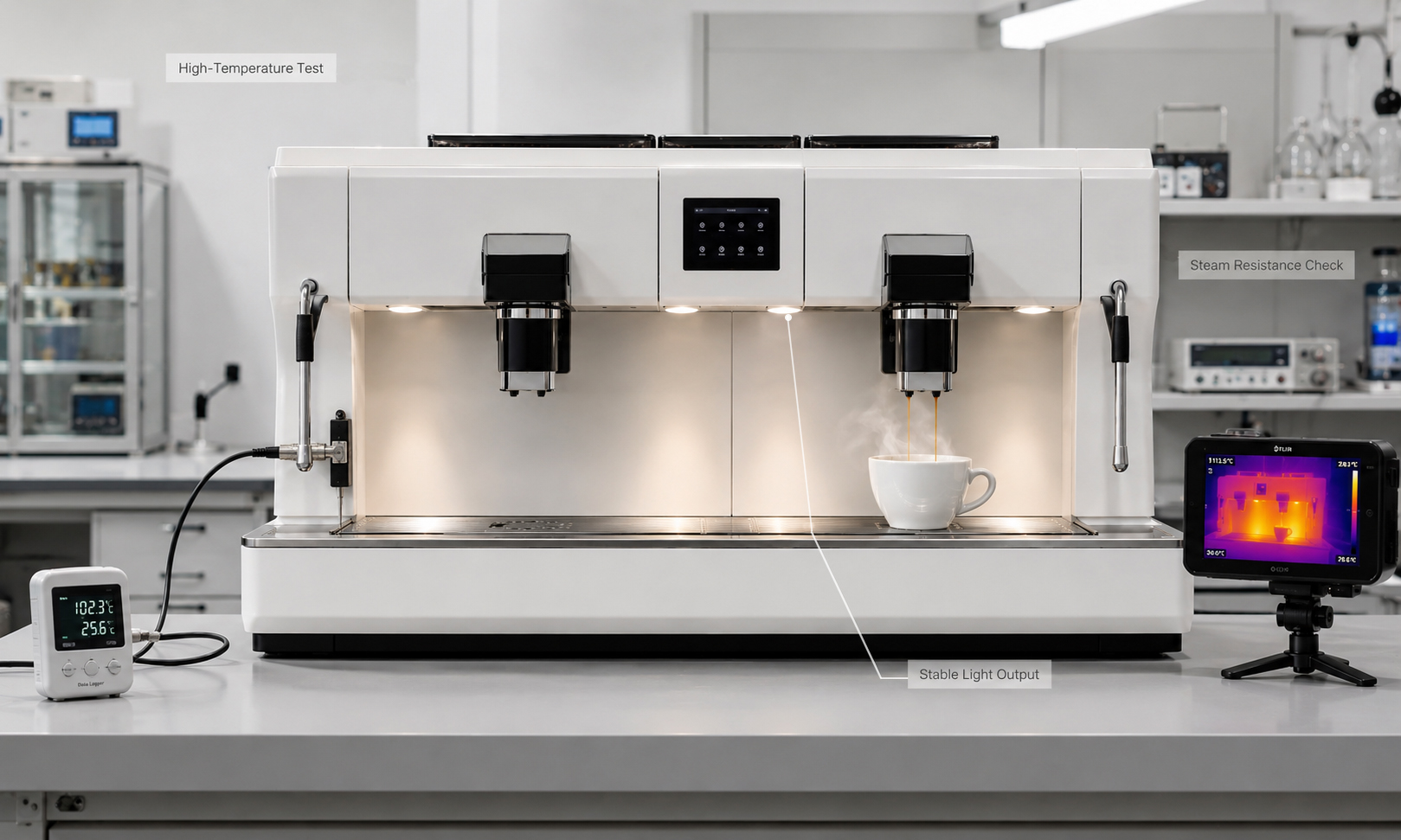

- Heat soak | Condition: max temperature zone | Pass: stable output; no deformation/discoloration beyond spec

- Steam/condensation exposure | Condition: repeated cycles | Pass: no moisture ingress; stable output

- Chemical wipe test | Condition: project-defined agents | Pass: no cracking/stickiness; appearance within spec

- Glare/appearance check | Condition: user viewing angles | Pass: acceptable glare/hotspot level

- Dimming/flicker check | Condition: control method | Pass: stable dimming; no visible flicker

Compliance support (as applicable):

- CE / RoHS / REACH

- UL/ETL support if requested (confirm model scope)

Documents pack typically includes:

- Product specification sheet (electrical/optical/mechanical)

- Wiring diagram + harness drawing + pinout

- Harness BOM (wire gauge, connector type, lengths)

- Installation guide (mounting + cleaning guidance)

- Validation / test plan + test summary (project-based)

- Incoming inspection checklist + in-process QC checklist

- Traceability: lot marking + basic production records

- Change control: ECN/PCN record for revisions

- Packing and labeling requirements (if provided by customer)
