5M

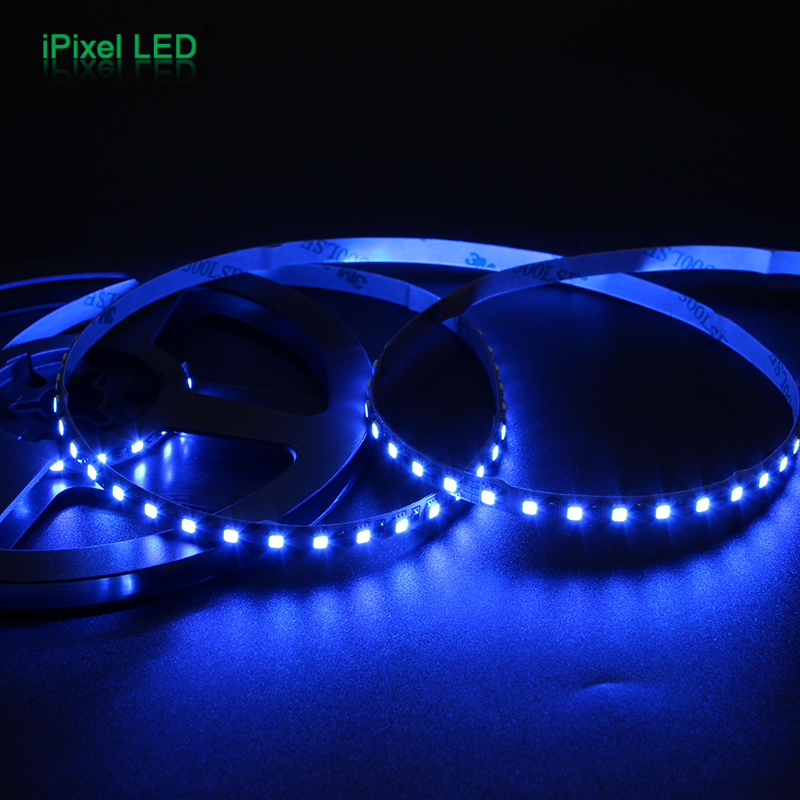

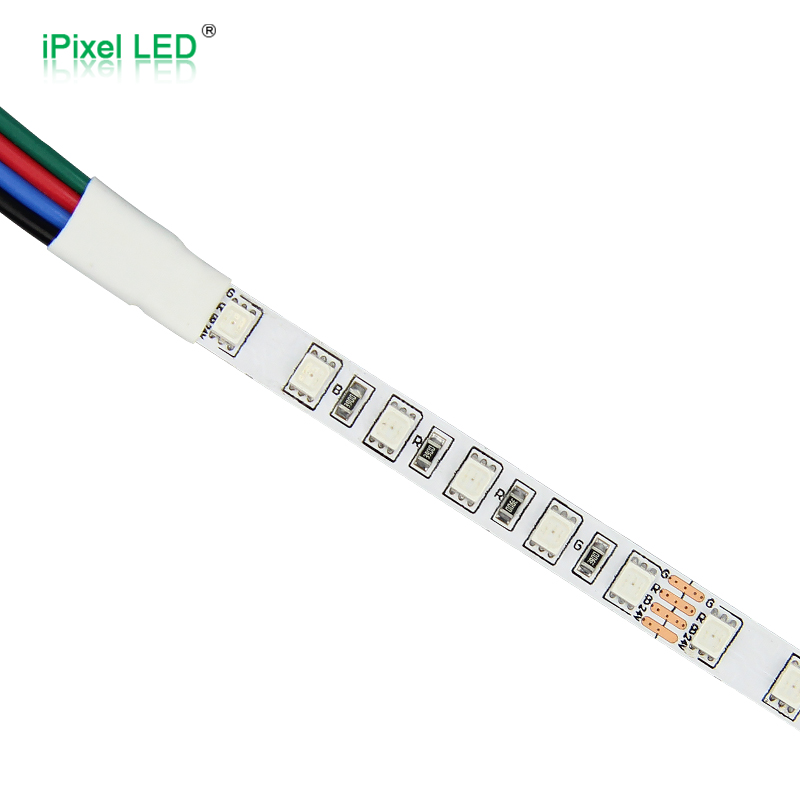

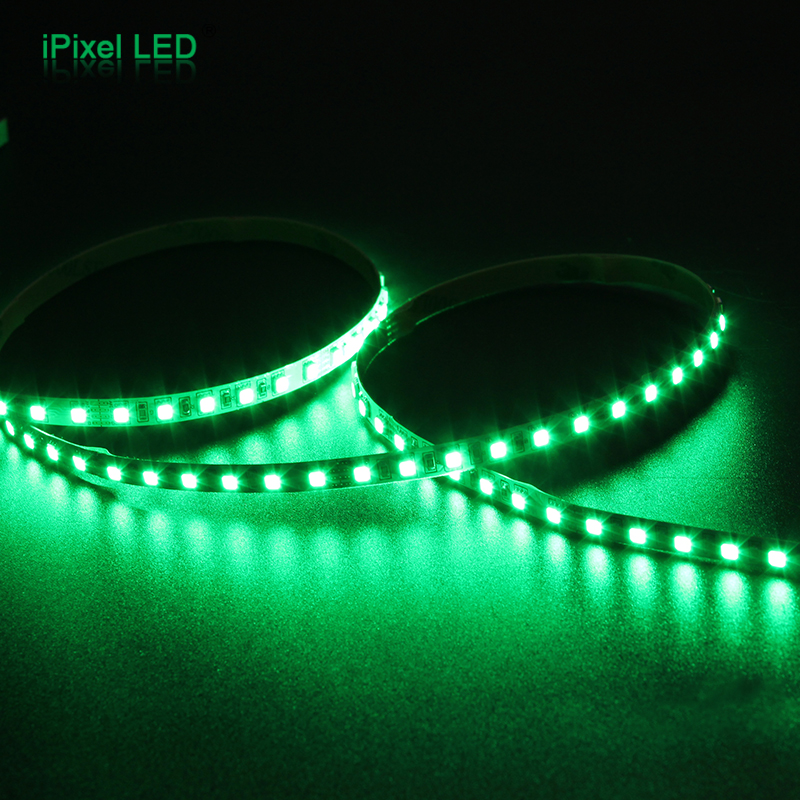

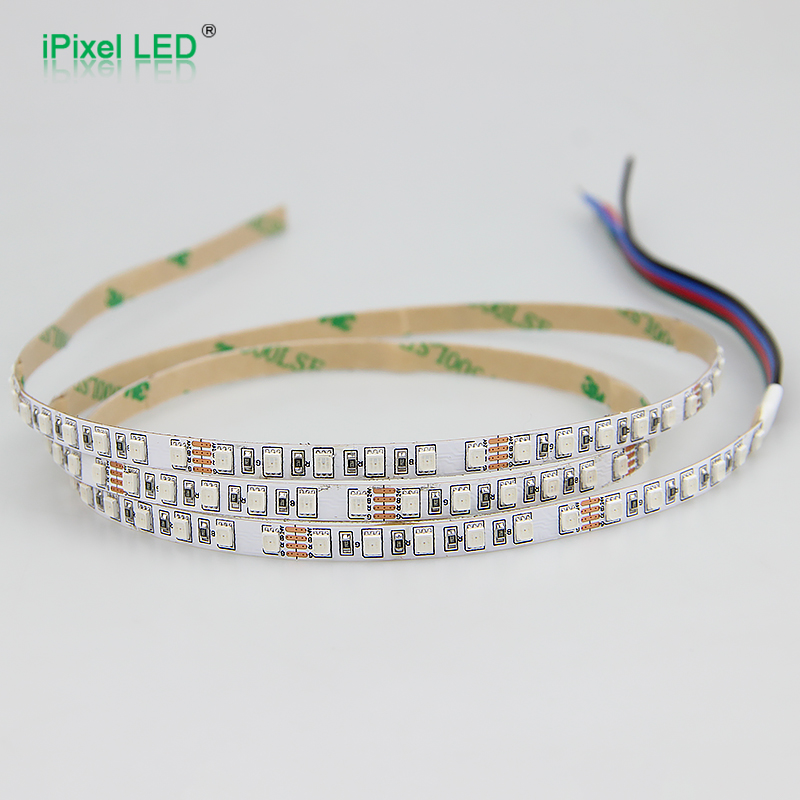

RGB SMD2835 Narrow LED Strip
-SMD 2835 RGB LED Flex
-This led strip has 120pcs LED chips in a meter
high density but narrow PCB 6mm width only
-You can use PWM controller to control it
-The input voltage is DC24V
-Flexible PCB, the FPCB color is white
-The FPCB width is 6mm
-Standard 5M/roll, length can be customized
DC24V120LEDs/m6mm WidchRGBIP20/IP65PWM
Series Overview & Key Features
Series Overview
This RGB flexible LED strip features 120 SMD2835 chips per meter on a 6mm white FPC. Powered by DC24V with PWM control, it delivers high brightness and a high CRI (Ra80), ideal for commercial lighting, display cases, architectural accents, and applications requiring precise color rendering.
Key Features
- High-density RGB – 120 LEDs/m with dedicated wavelengths (R 620–625 / G 520–525 / B 460–465 nm) and enhanced luminance (R:100 G:240 B:36lm).
- Flexible wide board – 6mm FPC, bends easily for flat or curved surfaces.
- Cuttable – Every 50mm (6 LEDs) for custom lengths.
- Efficient & cool – 15W/m, 24V reduces current loss, supports flicker-free PWM dimming.
- Wide beam – 120° angle ensures even light distribution.
- Multiple protection – Available in IP20, IP64, IP65, IP67 for indoor, damp, outdoor, or harsh environments.
- Durable range – -25~60°C; standard 5m reel with custom lengths available.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | Cutting Length | IP Rating | Lumen/m | Length |
|---|---|---|---|---|---|---|---|---|---|
| S006120BC3PZ | 120 | 24 | 15W | PWM | 6mm | 50mm/6LED | IP20 | R:100 G:240 B:36lm | 5M |
| S006120BC3PZ | 120 | 24 | 15W | PWM | 6mm | 50mm/6LED | IP65 | R:100 G:240 B:36lm | 5M |
How to Choose
| Application Need | Recommended Voltage | Recommended IP | Notes |
|---|---|---|---|
| Indoor Dry Environment | DC24V | IP20 | Cost-effective for indoor use |
| Indoor Damp Environment | DC24V | IP65 | Silicone coating for moisture resistance |
| Outdoor /Harsh Environment | DC24V | IP65/IP68 | Higher IP level for harsh condittion |
| Commercial/Display | DC24V | IP20/IP65 | High density for better visual effect |

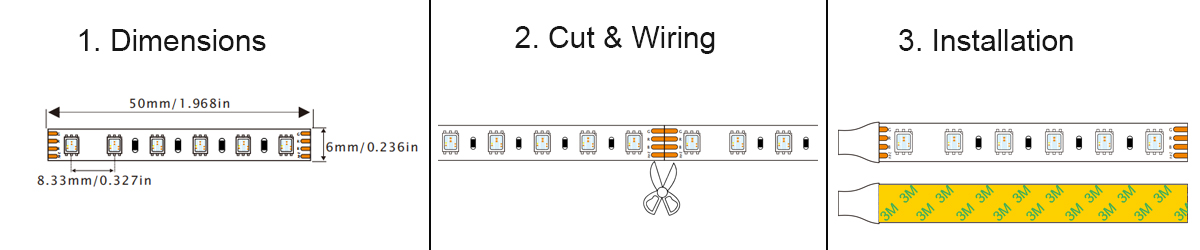

Structure & Installation
Protection, Customization & Options
| ltem | Options/Detalls | Remarks |
|---|---|---|
| IP Rating | IP20/IP65 | IP65 Sllicone Coating. |
| Color Option | RGB | Other CCts avollable onrequest. |
| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom length avallable. |
| PC Coler | White | Other PCB color available (Black). |
Related Items
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability

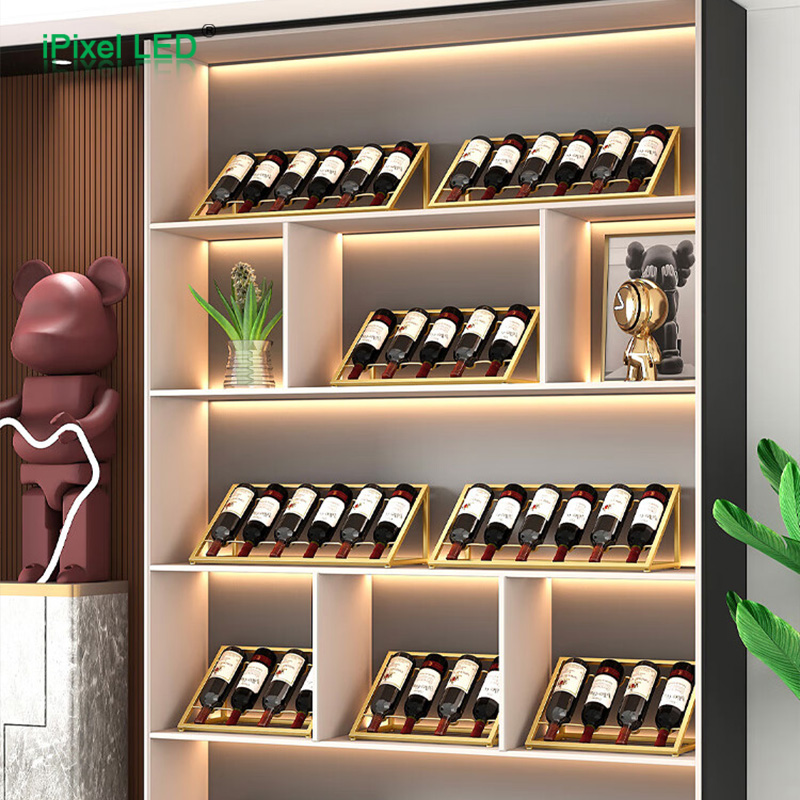

Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination

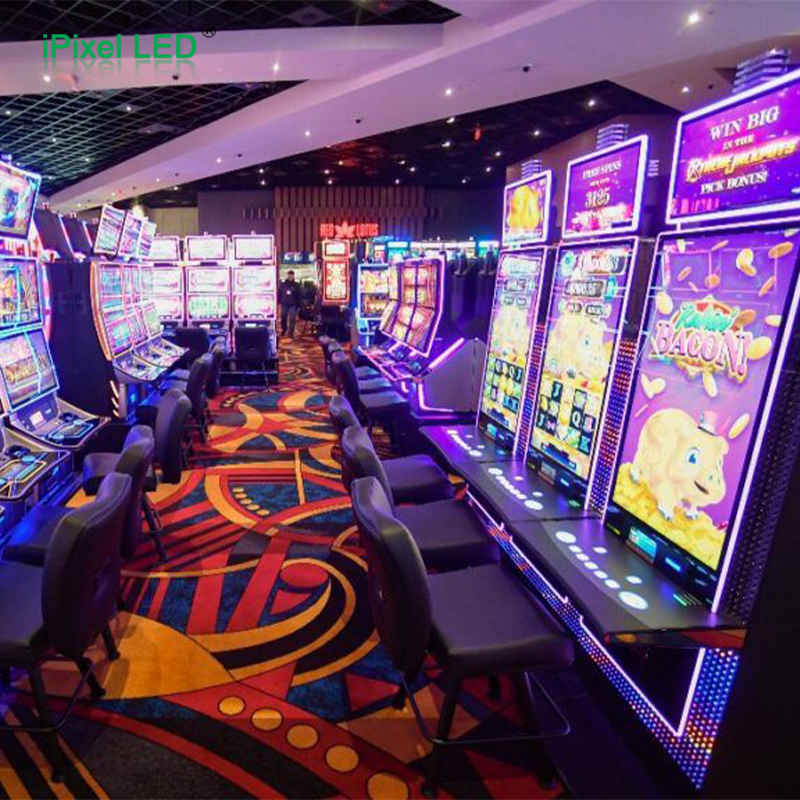

Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability

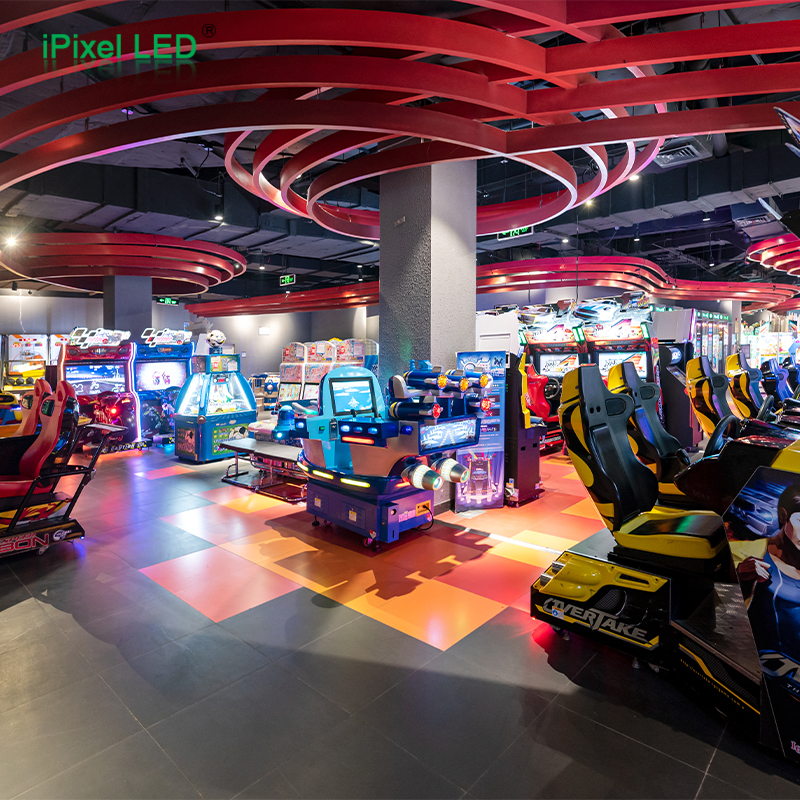

Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
3-7 Days
