It can be cut every 11.36mm.

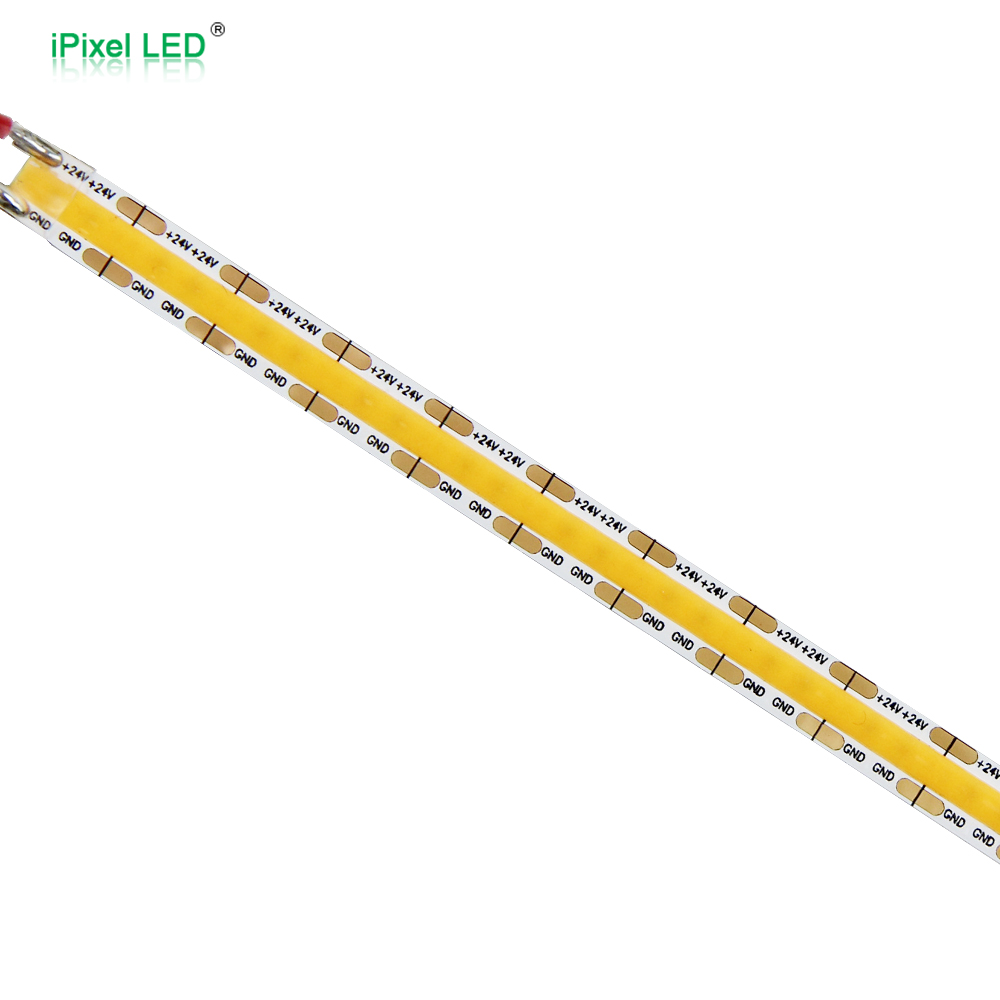

Mini cut COB 8mm 528LEDs/m single color led strip DC24V
-This led strip uses COB LED chips, high density
with 528LEDs/m, Mini Cut 11.36mm.
-Input voltage is DC24V
-Flexible PCB, the FPCB color is white
-The FPCB width is 8mm.

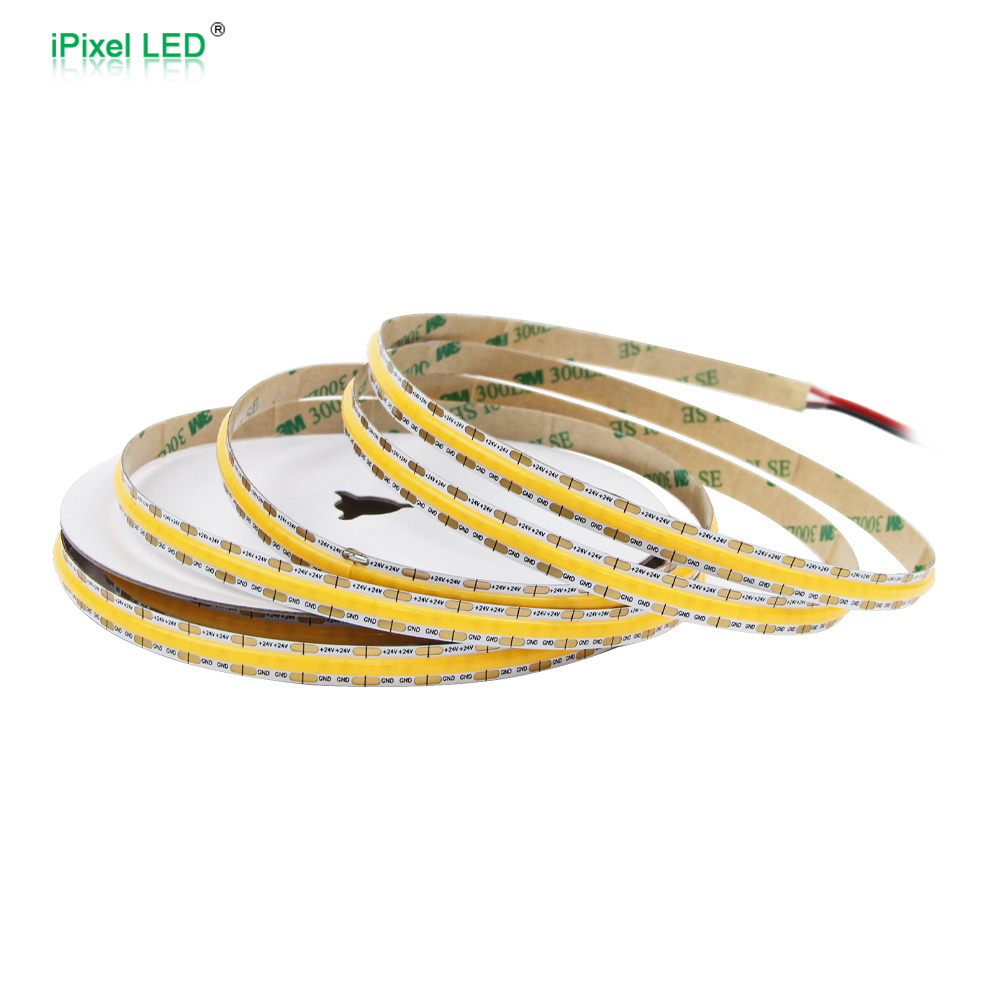

-Standard 5M/roll, length can be customized
DC24V528LEDs/m8mm WidchSingle ColorIP20/IP65
Series Overview & Key Features
Series Overview

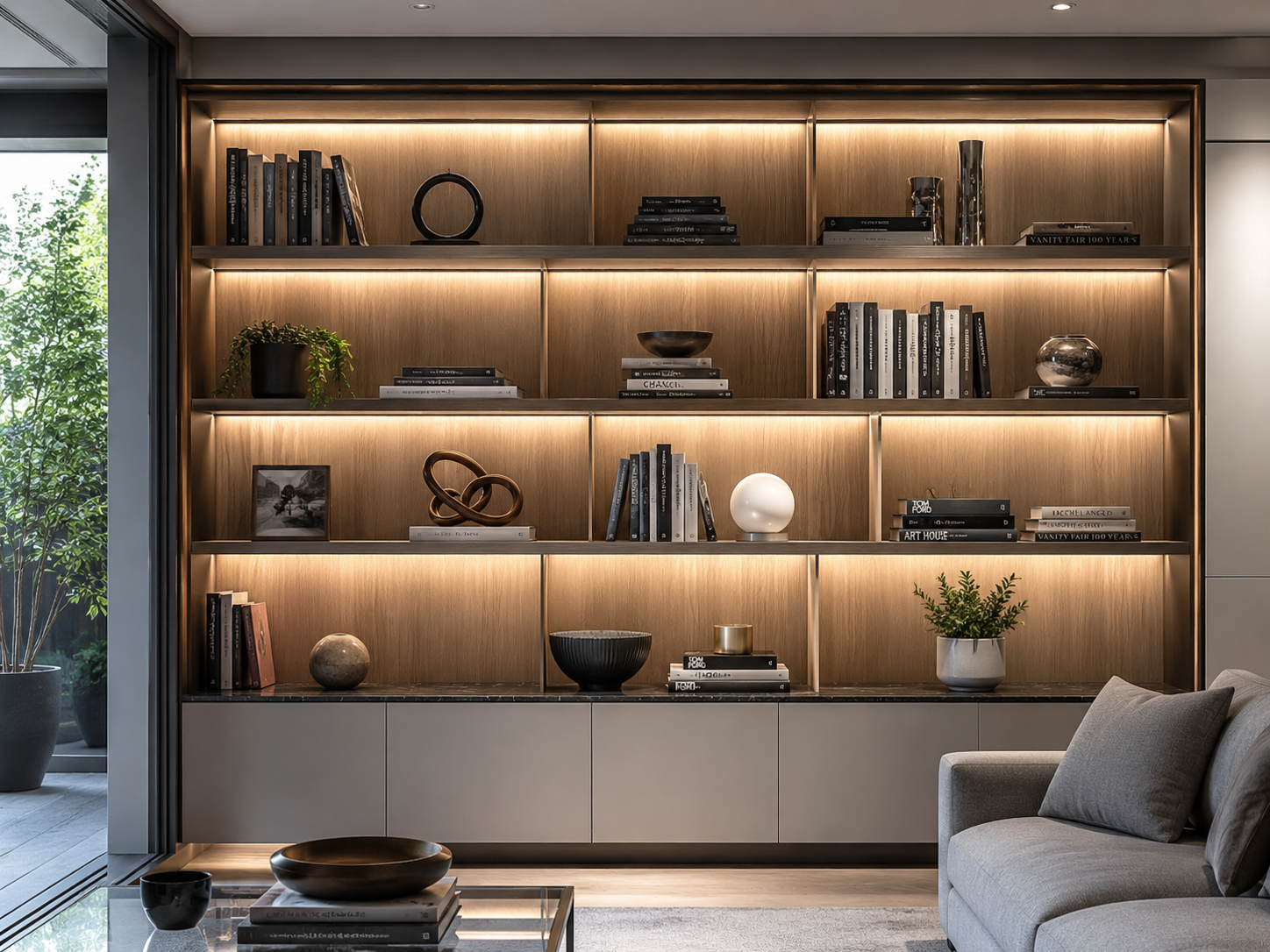

This COB single color LED strip is designed for applications that require smooth, continuous and dotless linear lighting. With 528 LEDs per meter and an 11.36mm mini cut unit, it is suitable for furniture lighting, cabinet lighting, display shelves, mirror cabinets, aluminum profiles and other compact installation spaces.
The 8mm flexible PCB makes it easy to fit into slim profiles or narrow grooves, while the DC24V input helps reduce current compared with 12V strips. Standard CCT options include 3000K, 4000K and 6500K, with CRI 90 for good color rendering.
Key Features
- High-density COB structure with 528 LEDs/m
- Dotless and continuous light output
- DC24V low-voltage input
- 8mm PCB width for slim installation spaces
- 11.36mm mini cut unit for flexible length adjustment
- 10W/m power design
- Standard CCT: 3000K / 4000K / 6500K
- CRI 90 for good color rendering
- IP20 / IP65 options
- Standard 5m roll length, custom length available
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S008528ZC1LZ | 528LEDs/m | 24V | 10W | Ra90 | 8mm | 11.36mm | IP20/IP65 | 875 lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need linear lighting without visible light spots | This COB strip is suitable |
| Narrow installation space | 8mm PCB fits slim profiles and narrow grooves |
| Need short cutting pitch | 11.36mm mini cut unit is suitable |
| For cabinets, wardrobes, kitchen cabinets, and mirror cabinets | Recommended |
| For aluminum profile diffuser covers | Recommended for soft and uniform lighting |
| High color rendering required | CRI 90 is suitable for furniture and display lighting |
| Need for damp environments | Choose IP65 version and confirm end sealing |
| Need long‑term outdoor exposure or underwater use | Not recommended as standard; project-based structure required |

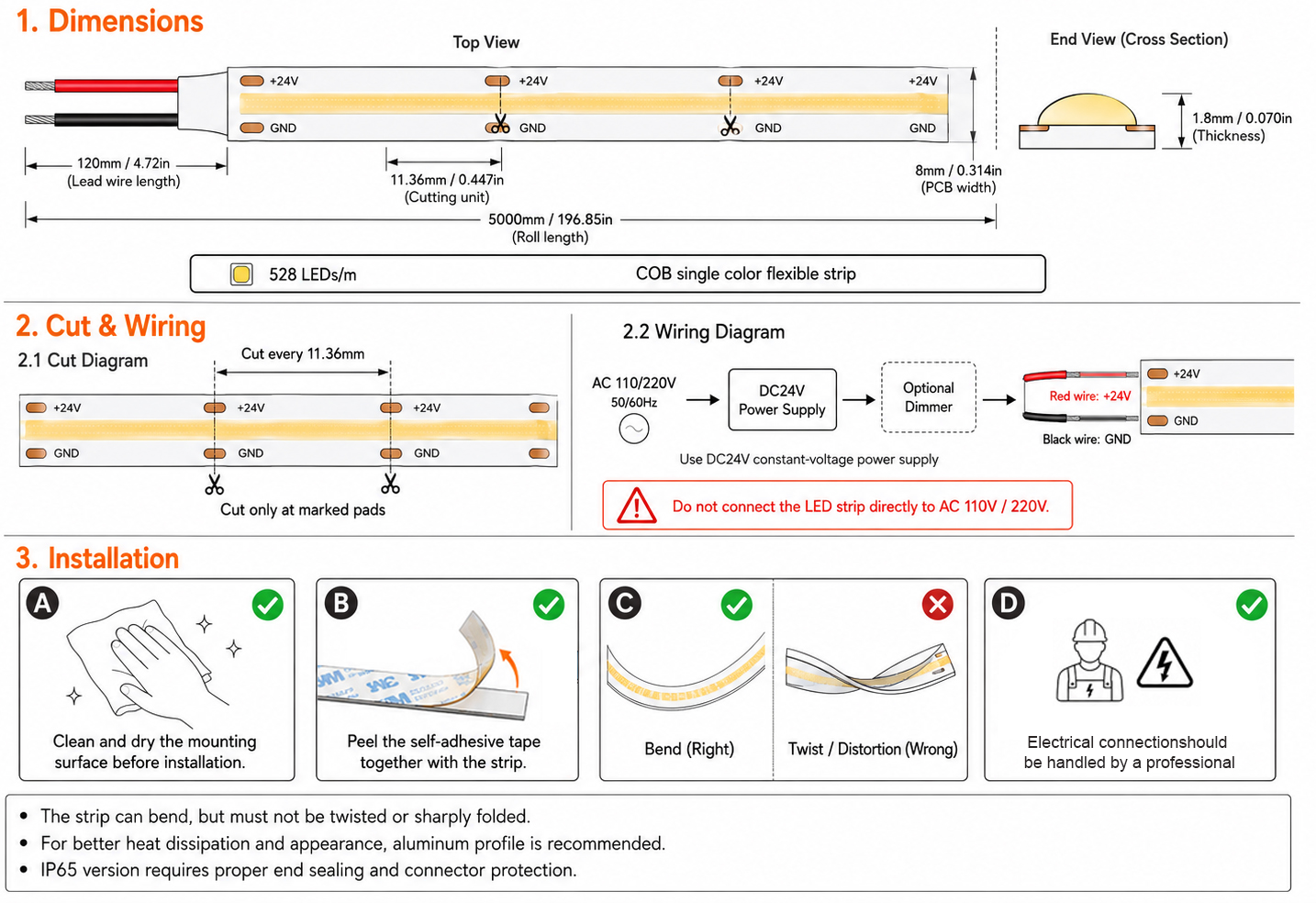

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| CCT | 3000K / 4000K / 6500K | Other CCT can be evaluated by project |
| CRI | Ra90 standard | Higher CRI can be confirmed by LED bin |
| IP Rating | IP20 / IP65 | IP65 requires proper end sealing |
| Length | 5m standard / custom length | Based on project requirement |
| Cable | Standard wire / custom cable length | For OEM assembly |
| Connector | Bare wire / terminal / custom connector | Based on installation method |
| Mounting | Adhesive tape / aluminum profile | Aluminum profile improves heat dissipation and appearance |
| Packing | Reel / project packing | Can be customized for OEM orders |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. The high-density COB structure provides smooth and continuous linear light output.
This model uses an 8mm flexible PCB.
Yes. IP20 and IP65 versions are available. For IP65 use, end sealing and connector protection should be confirmed.
It is recommended when better heat dissipation, mechanical protection or softer diffusion is needed.
