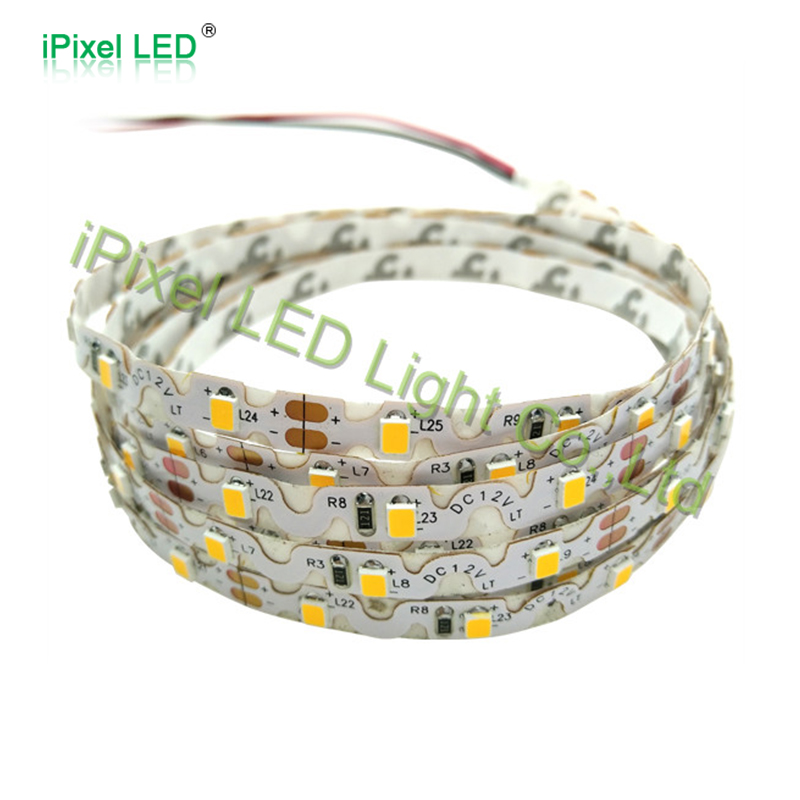

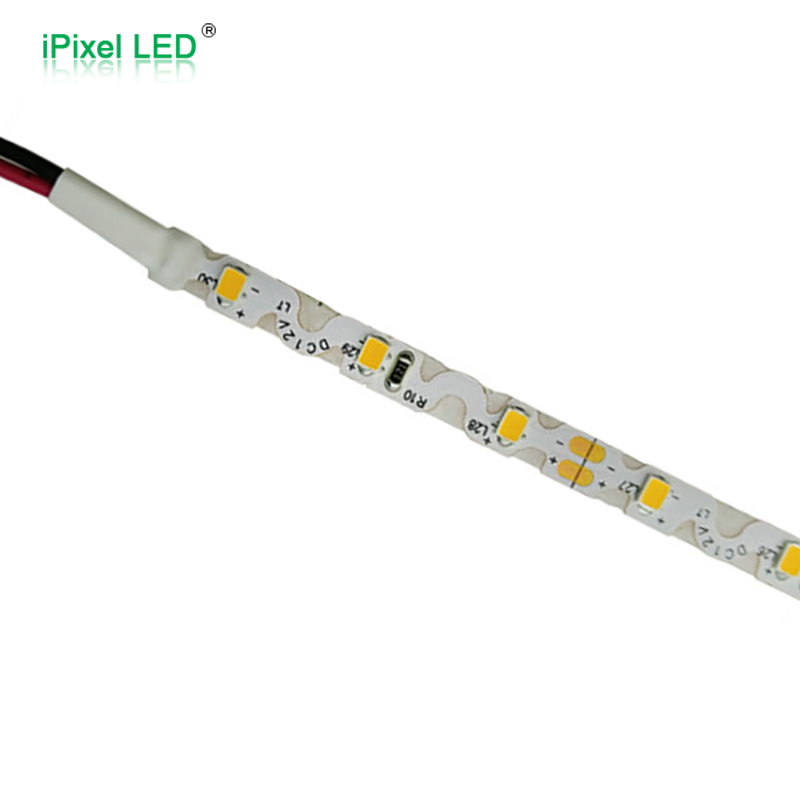

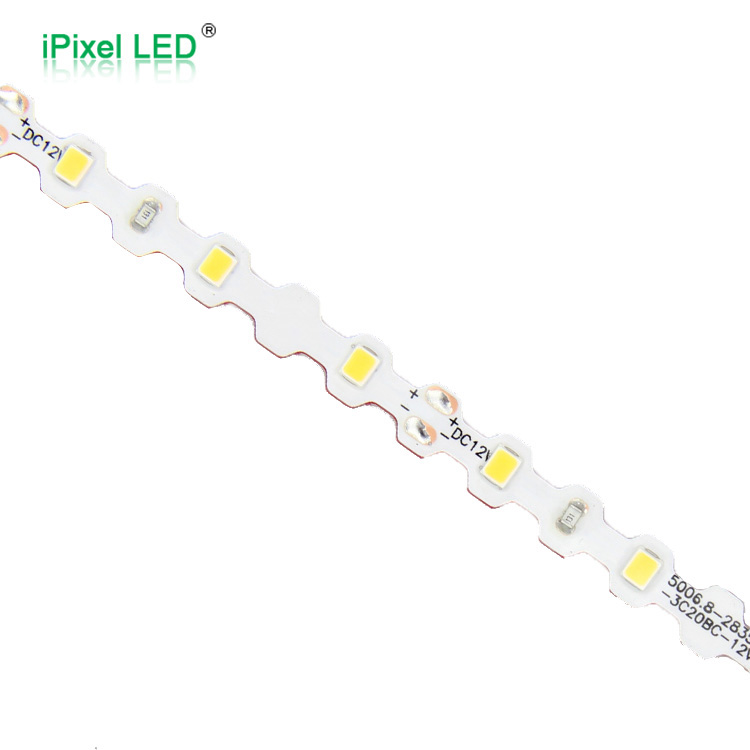

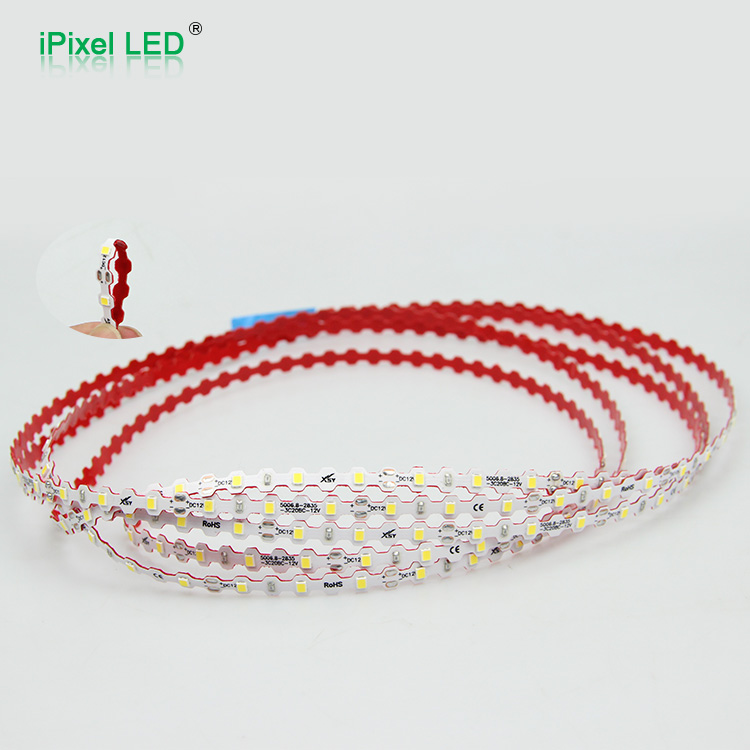

SMD2835 Single Color S Shape / Zigzag Flexible LED Strip Series
- S shape(zigzag) flex led strip with SMD2835 static color 60LEDs/m
- The biggest advantage is the S shape, which can be bend at any angle
- Only available in IP20 non-waterproof version
- Standard 5m per roll, the length also can be customized
DC12V/24V60LEDs/m6/7mm WidchSingle ColorIP20S Shape / Zigzag
Series Overview
This series features S-shaped (zigzag) single-color 2835 flexible strips at 60 LEDs/m, IP20 non-waterproof, standard 5m reel with custom lengths available. The unique S-shaped design allows bending at any angle, breaking the limits of straight-line installations. Available in 6mm (DC12V/24V, 4.8W/m) and 7mm (DC12V, 6W/m) widths, with CCT options of 3000K/4000K/6500K, Ra90, and SDCM<5 for excellent color consistency.
Key Features
- S-shaped (zigzag) circuit design enables bending at any angle for flexible shaping.
- High CRI Ra90 with pure CCT (SDCM<5).
- Ultra‑narrow 6mm/7mm width suits tight spaces and curved surfaces.
- DC12V/24V options (6mm version) for diverse power requirements.
- Flexible cutting (6mm: 50mm/3LED or 100mm/6LED; 7mm: 50mm/3LED).
- IP20 indoor only; ESD protection recommended during installation.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m | Length |
|---|---|---|---|---|---|---|---|---|---|
| S006060BB1LZ(S) | 60 | 12V | 4.8W | Ra90 | 6mm | 50mm / 3 LEDs | IP20 | 515lm | 5M |
| S006060BC1LZ(S) | 60 | 24V | 4.8W | Ra90 | 6mm | 100mm / 6 LEDs | IP20 | 515lm | 5M |
| S007060BB1LZ(S) | 60 | 12V | 6W | Ra90 | 7mm | 50mm / 3 LEDs | IP20 | 541lm | 5M |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Narrow installation space with serpentine bending required | 6mm S Shape |
| DC24V needed for lower current or longer runs | 6mm DC24V version |
| Need slightly higher power and brightness | 7mm DC12V version |
| Irregular lettering, curves, corners, and shaped installations | S Shape / Zigzag series |
| Damp or outdoor environments | Not recommended for direct use; this series is currently IP20 only |
| Waterproof serpentine light strip required | Needs project‑based re‑evaluation of the structure; direct commitment is not recommended at this stage |

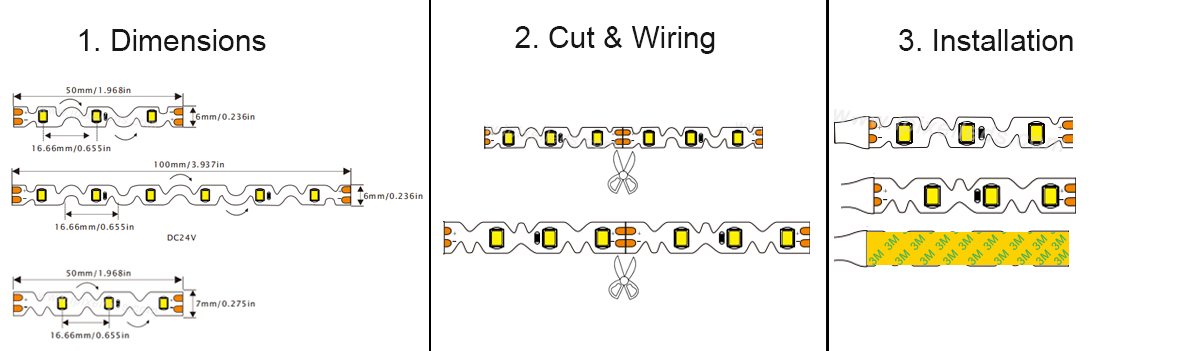

Structure & Installation
Protection, Customization & Options
| ltem | Options/Detalls | Remarks |
|---|---|---|
| IP Rating | IP20/IP65 | IP65 Sllicone Coating. |
| Color Option | RGB | Other CCts avollable onrequest. |
| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom length avallable. |
| PC Coler | White | Other PCB color available (Black). |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. IP20, IP65 and IP67 options are available depending on the selected structure and installation environment.
For longer runs, 24V usually helps reduce current and voltage drop compared with 12V.
Photometric test reports and selected certification documents can be provided according to product and project requirements.
