Constant current design helps improve brightness consistency along longer runs and reduces visible brightness drop compared with standard constant-voltage strips.

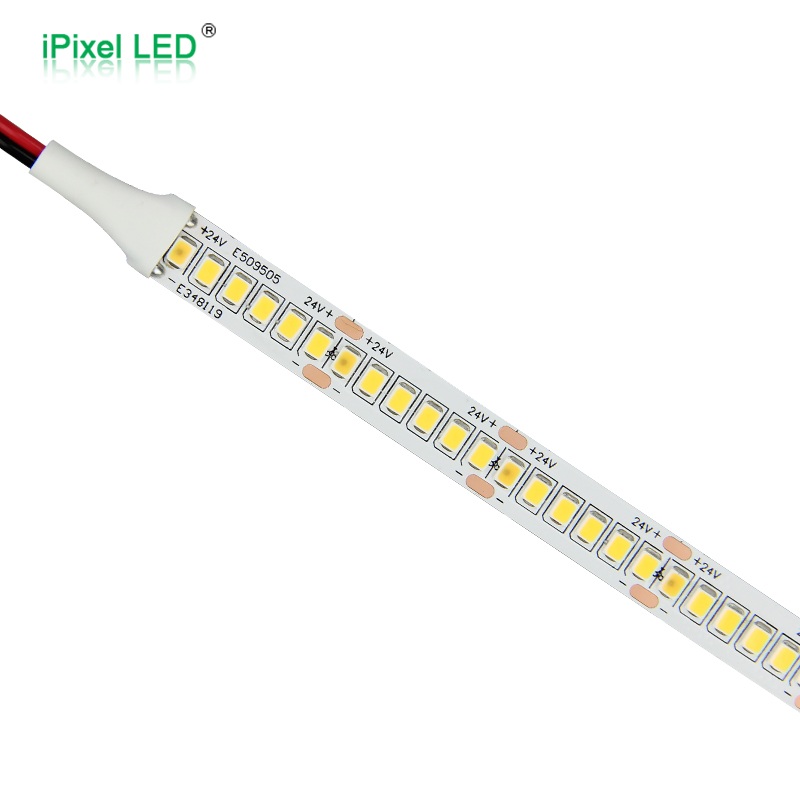

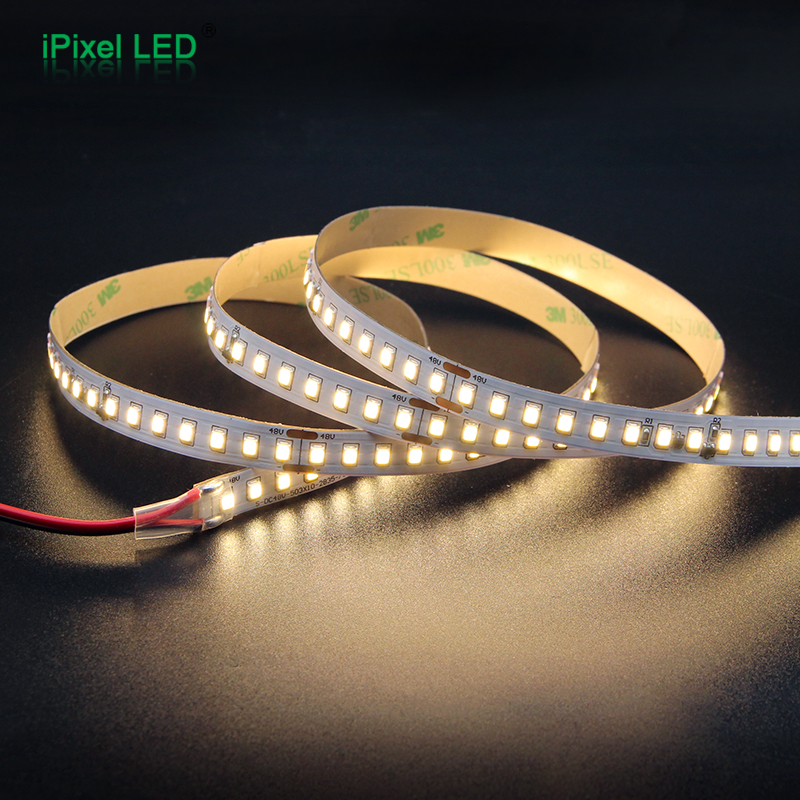

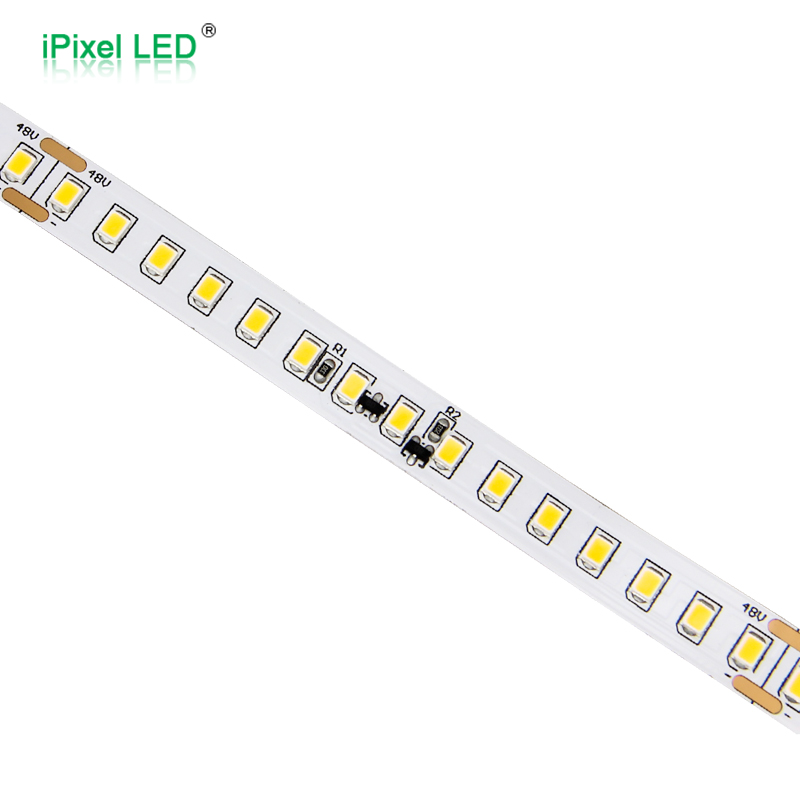

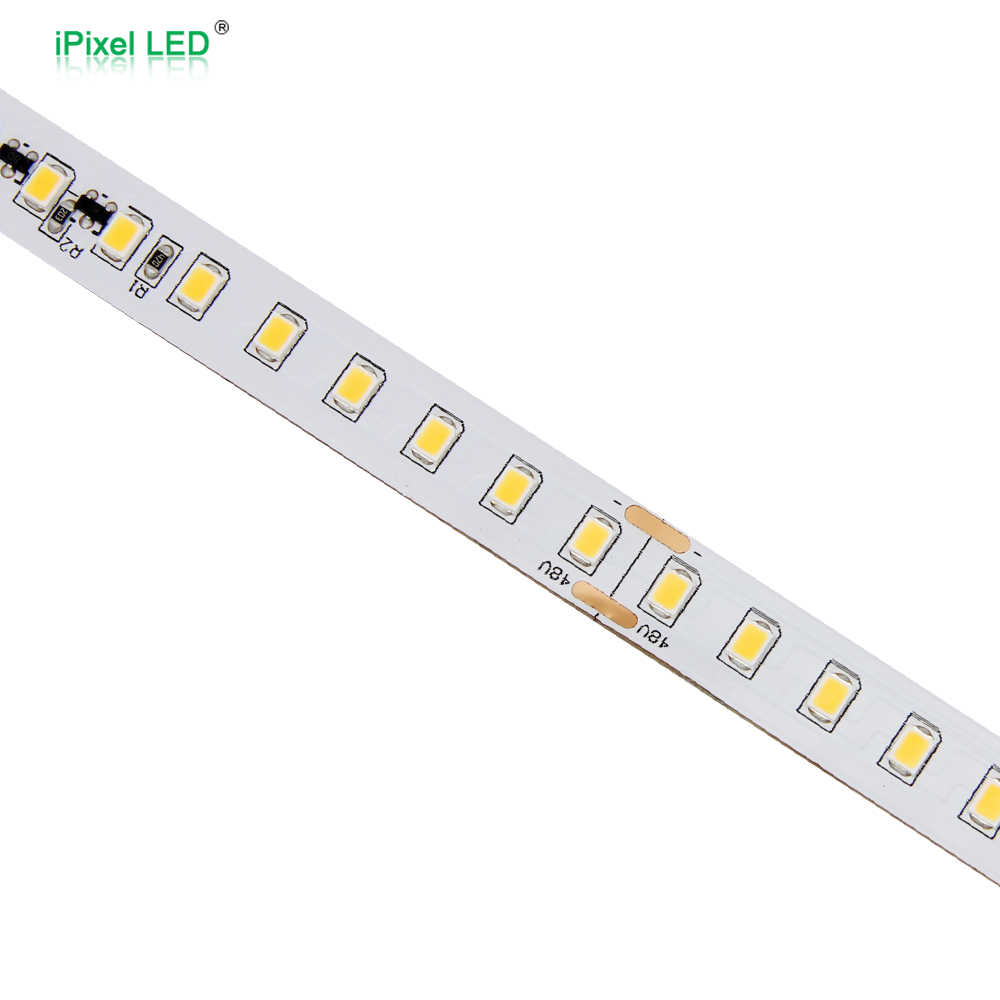

SMD2835 Constant Current Single Color LED Strip Series
-Use 2835 high brightness led, high purity gold line, SANAN chip.
-60/130/150/240LEDs/M, high luminance efficiency and high Ra.
-Input voltage DC24V/48V. Luminance efficiency
-Constance current design,brightness keeps the same
-Flexible PCB, FPC color: white.
-1+2 OZ copper thickness FPC, 10mm PCB width.
DC24V/48V60/130/150/240LEDs/m10mm WidchSingle ColorIP20/IP64/IP65/IP67
Series Overview & Key Features
Series Overview
This series features high-brightness 2835 single-color flexible strips with SANAN chips and high-purity gold wire bonding. Available in five widths (5mm/6mm/7mm/8mm/10mm), three densities (60/120/240 LEDs/m), and multiple voltages (DC5V/12V/24V), with power ranging from 4.8W/m to 19W/m. CRI from Ra80 to Ra90, CCT options of 3000K/4000K/6500K, and maximum luminance up to 1805lm/m. IP20 to IP67 rated, standard 5m reel with custom lengths available – suitable for applications from narrow coves to outdoor architecture.
Key Features
- 2835 high‑brightness chips, up to 240 LEDs/m in single or dual‑row layouts.
- Multiple voltage options (5V/12V/24V) for various power systems.
- Ultra‑narrow 5–10mm widths fit tight spaces.
- High CRI Ra≥90 (Ra80 for select models) with pure CCT (SDCM<5).
- Flexible cutting (minimum 16.6mm/1LED) for precise installation.
- IP20–IP67 ratings for indoor and outdoor use; thickened copper options reduce voltage drop.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S010060BC1HZ | 60LEDs/m | 24V | 4.8W | ≥90 | 10mm | 100mm / 6LED | IP20/IP65 | 470 lm/m |
| S012120BC1HZ | 120LEDs/m | 24V | 10W | ≥90 | 12mm | 50mm / 6LED | IP20/IP65 | 920lm/m |
| S010130BJ1HZ | 130LEDs/m | 48V | 7W | ≥90 | 10mm | 100mm / 13LED | IP20/IP65 | 700 lm/m |
| S010150BJ1HZ | 150LEDs/m | 48V | 10W | ≥90 | 10mm | 100mm / 15LED | IP20/IP65 | 1155 lm/m |
| S010240BC1HZ | 240LEDs/m | 24V | 19.2W | ≥90 | 10mm | 25mm / 6LED | IP20/IP65 | 1700 lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a 20m long reel with consistent brightness | S010060BC1HZ |
| Need lower power and longer distance | S010130BJ1HZ |
| Need high luminous efficacy and a 48V long‑run project | S010150BJ1HZ |
| Need higher brightness and high‑density light output | S010240BC1HZ |
| Want to reduce voltage drop | DC48V is recommended |
| Need shorter cutting pitch | S010240BC1HZ, 25mm/6LED |
| For long‑hour operation or high‑power applications | Aluminum profile is recommended for heat dissipation |
| For damp or semi‑outdoor environments | Choose IP64 / IP65 / IP67 and confirm end sealing |

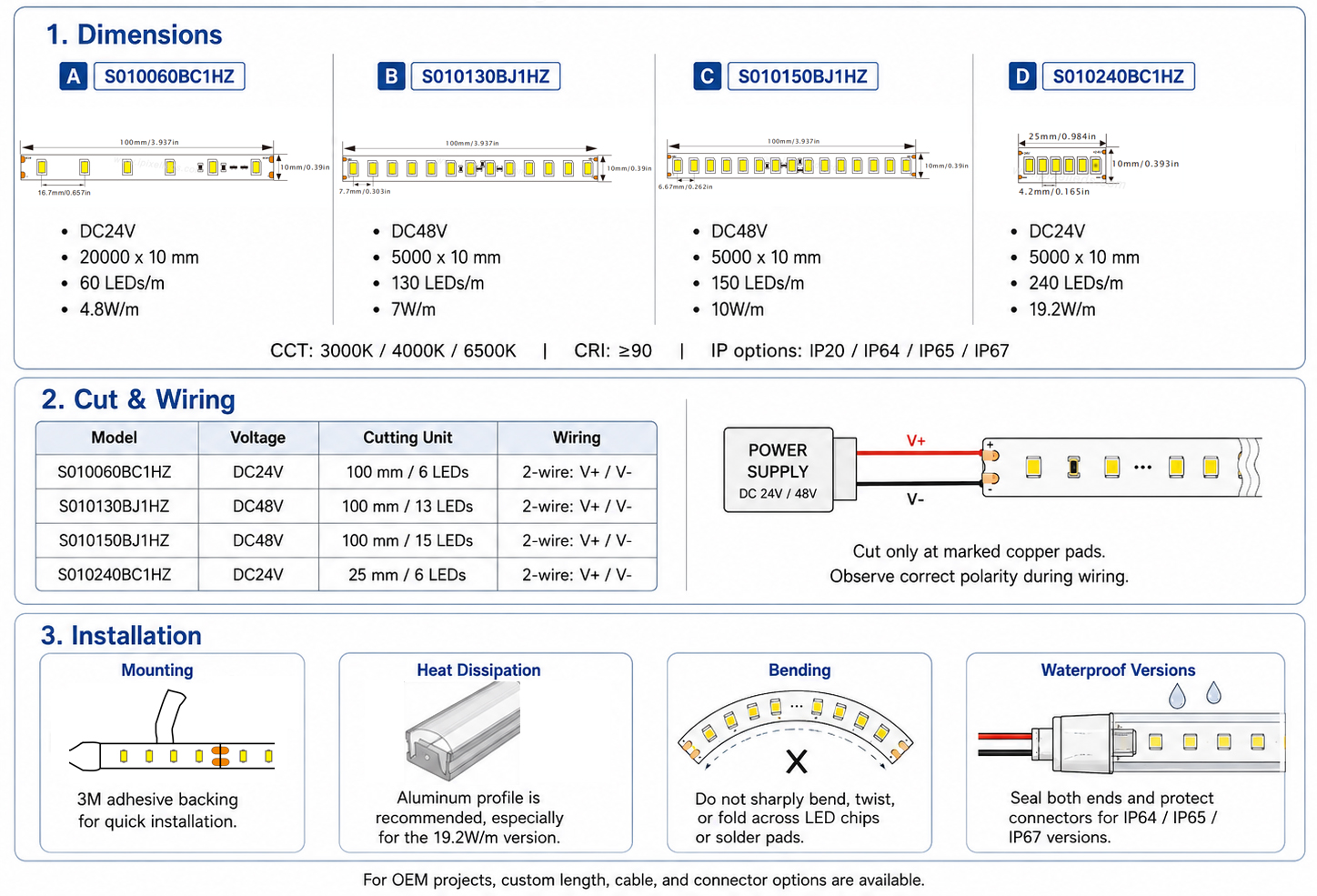

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V / DC48V | Choose according to run length, voltage drop and power requirement |
| CCT | 3000K / 4000K / 6500K | Custom CCT can be evaluated by project |
| CRI | CRI ≥90 standard for this series | Confirm LED bin and batch requirement before order |
| LED Density | 60 / 130 / 150 / 240 LEDs/m | Higher density improves brightness and visual uniformity |
| PCB Width | 10mm | Suitable for standard aluminum profiles and project installation |
| Protection | IP20 / IP64 / IP65 / IP67 | IP process may affect size, CCT and luminous flux |
| Cable | Standard bare wire / custom cable length | Select wire gauge based on current and installation length |
| Connector | Bare wire / terminal / quick connector / custom harness | OEM wiring support available |
| Roll Length | 5m standard / 20m version / custom length | Based on model and project requirement |
| Mounting | 3M tape / aluminum profile / clips | Aluminum profile recommended for heat dissipation |
| Packaging | Reel / antistatic bag / carton / project packing | Can be customized for OEM supply |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
For longer runs, 48V usually helps reduce current and voltage drop. For standard project lengths, 24V may be easier to match with common drivers and controllers.
No. Long-run performance depends on model, power, voltage, cable size, installation method and ambient temperature. The suitable wiring method should be confirmed for each project.
Yes. IP20, IP64, IP65 and IP67 options are available depending on the selected model and protection process.
