It can be cut every 50mm / 6 LEDs.

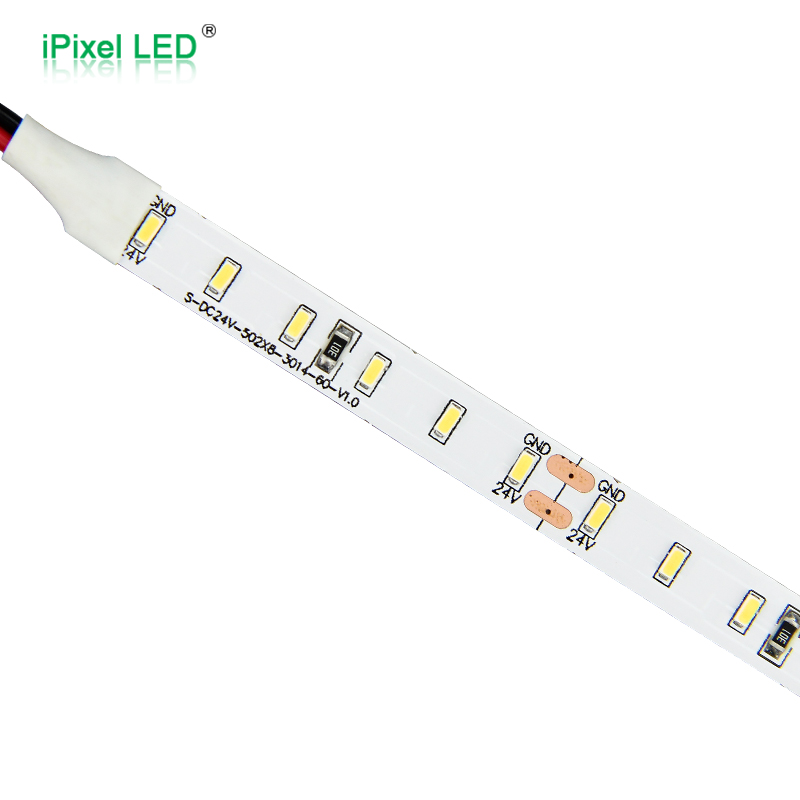

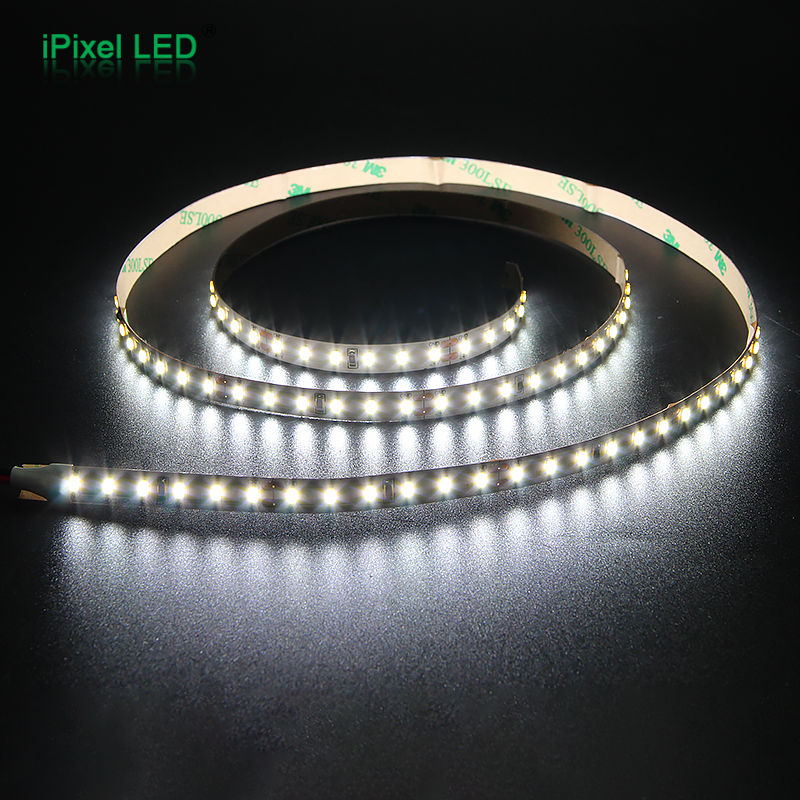

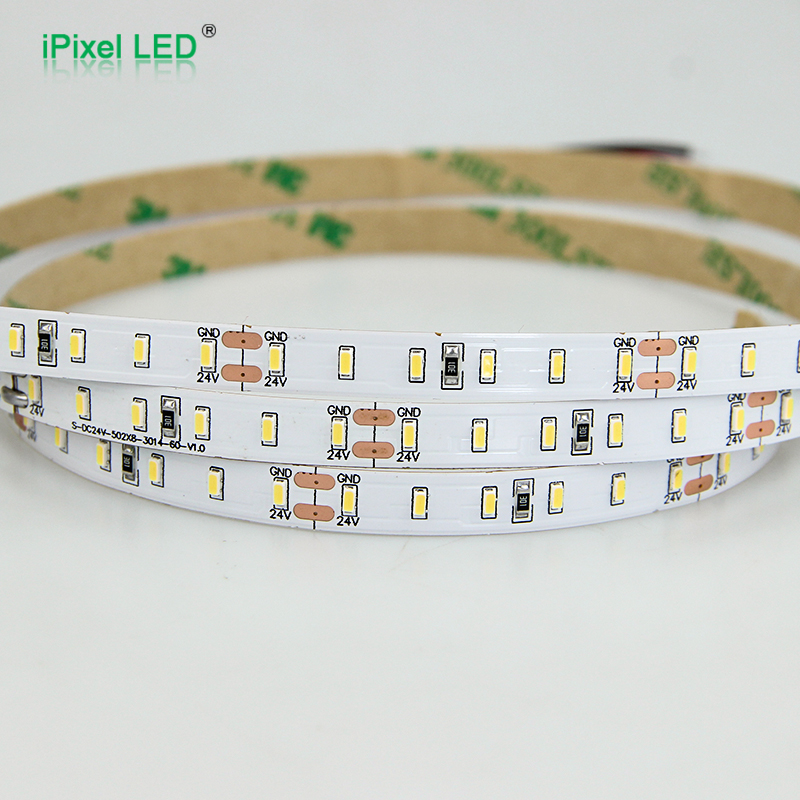

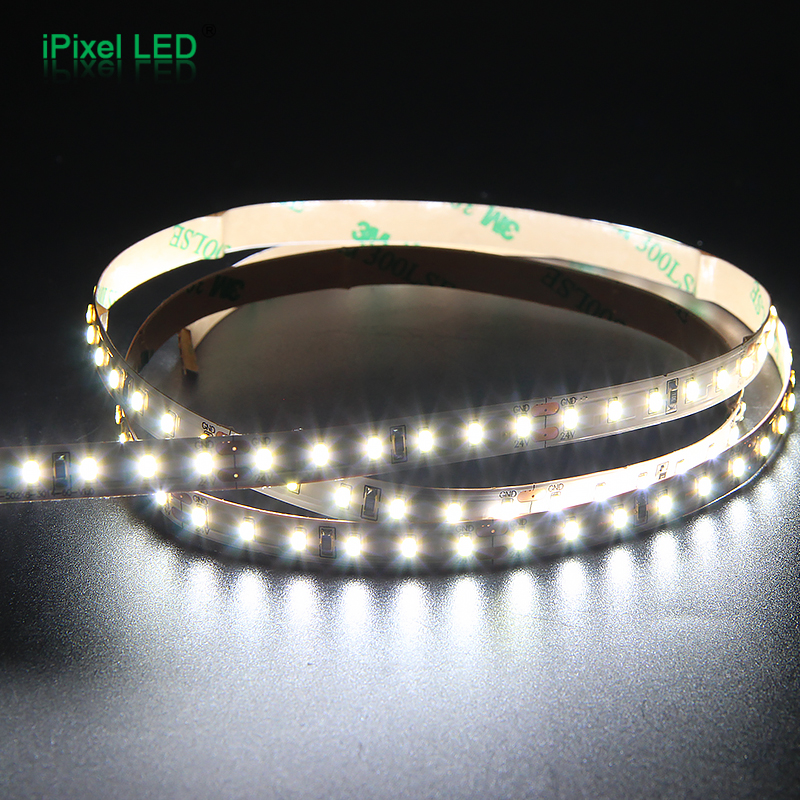

SMD3014 Single Color Flexible LED Strip – 120 LEDs/m, DC24V
- This led strip with 120pcs high quality SMD3014
LED chips, high Lumen output
- The input voltage is DC24V
- Flexible PCB, FPC color: white.
- it's easy to custom High CRI or different
color temperature.
- Standard 5M/roll, length can be customized
DC24V120LEDs/m8mm WidchSingle ColorIP20/IP64/IP65/IP67
Series Overview & Key Features
Series Overview

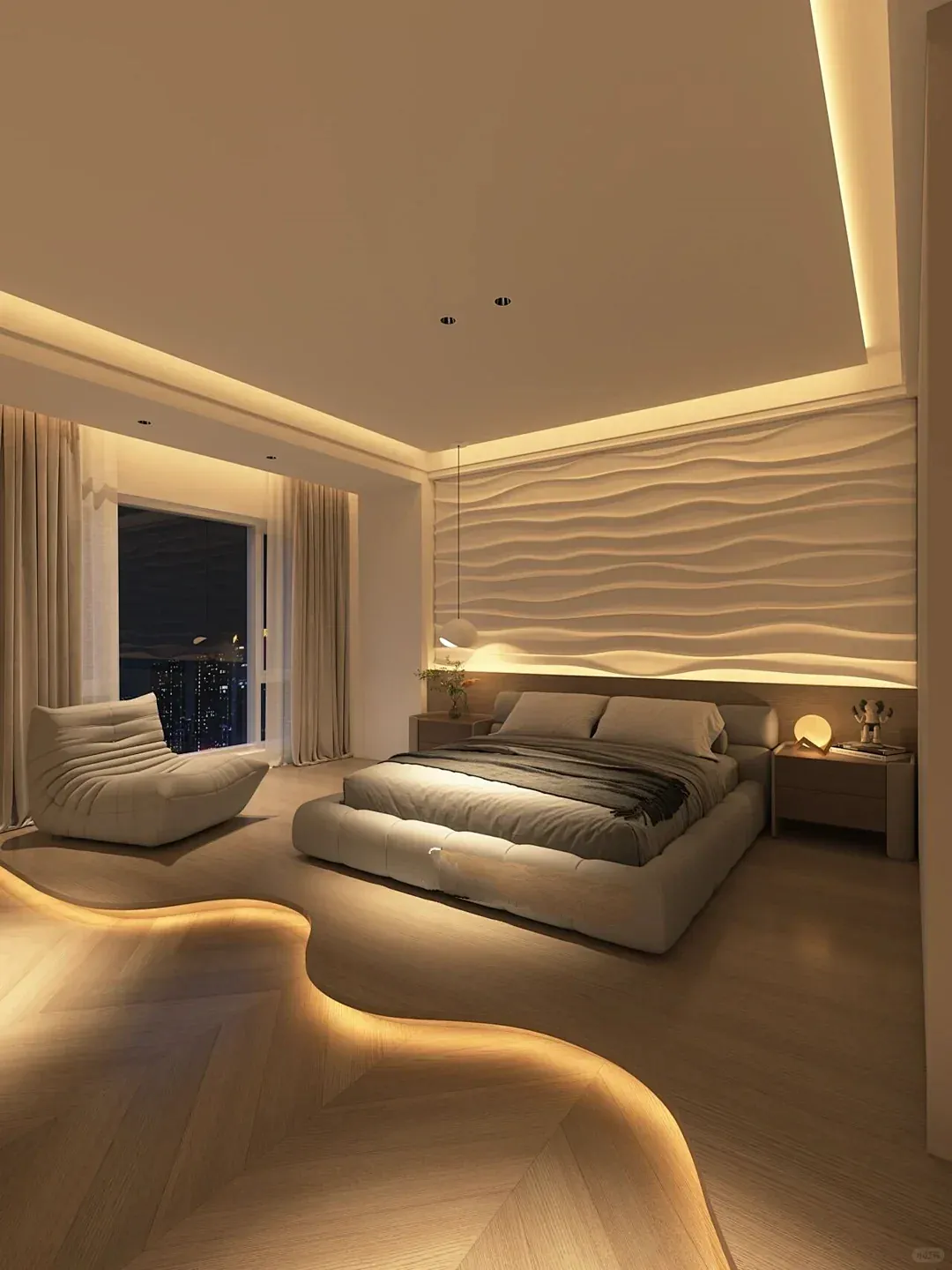

This SMD3014 single color flexible LED strip is designed for low-voltage linear lighting applications where a slim 8mm PCB, stable DC24V input and smooth white light output are required. With 120 LEDs per meter and a 50mm cutting unit, it is suitable for cabinet lighting, display fixtures, furniture lighting and aluminum profile installation.
Key Features
DC24V constant voltage input
SMD3014 LED package with 120 LEDs/m
8mm flexible PCB for slim installation spaces
10W/m power consumption
50mm / 6 LEDs cutting unit
Standard 5m roll length, custom length available
Optional IP20 / IP64 / IP65 / IP67 protection structures
CCT options: 3000K / 4000K / 6500K
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | Cutting Length | IP Rating | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S008120GC1LZ | 120LEDs/m | 24V | 10W | Ra80 | 8mm | 50mm / 6 LEDs | IP20/IP65 | 920 lm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a 24V low‑voltage white light strip | This model is suitable |
| Narrow installation space | 8mm PCB is suitable for slim profiles or cabinet grooves |
| Need more uniform light output than 60 LEDs/m | 120 LEDs/m is recommended |
| Need short cutting pitch | 50mm cutting unit supports flexible installation |
| Need for damp environments | Choose IP65 / IP67 version and confirm end sealing |
| Need higher color rendering index | CRI90 can be customized if required |
Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| CCT | 3000K / 4000K / 6500K | Other CCT can be customized |
| CRI | Ra80 standard / Ra90 optional | Confirm before order |
| IP Rating | IP20 / IP64 / IP65 / IP67 | IP versions may affect size, CCT and luminous flux |
| Length | 5m standard roll / custom length | Based on project requirement |
| Cable | Bare wire / custom wire length | Based on assembly method |
| Connector | Custom connector optional | Suitable for OEM projects |
| Mounting | 3M tape / aluminum profile | Aluminum profile helps heat dissipation and diffusion |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
This model uses an 8mm flexible PCB.
Yes. IP20, IP64, IP65 and IP67 versions can be provided depending on the application environment.
Yes. Standard CCT options include 3000K, 4000K and 6500K. Higher CRI or custom color temperature can be provided based on project requirements.
It is recommended when better heat dissipation, mechanical protection or softer light diffusion is needed.
