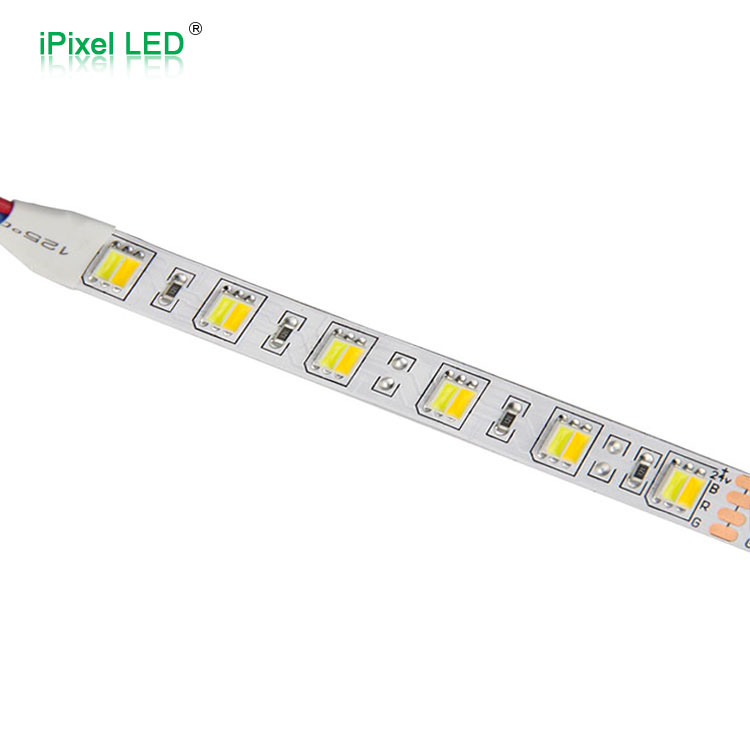

It uses SMD5050 2-in-1 dual white LEDs.

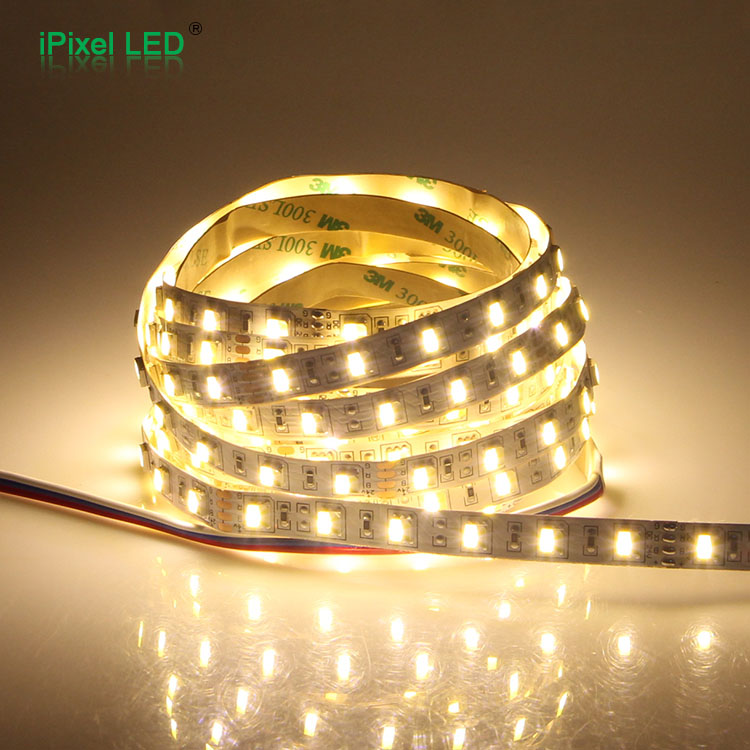

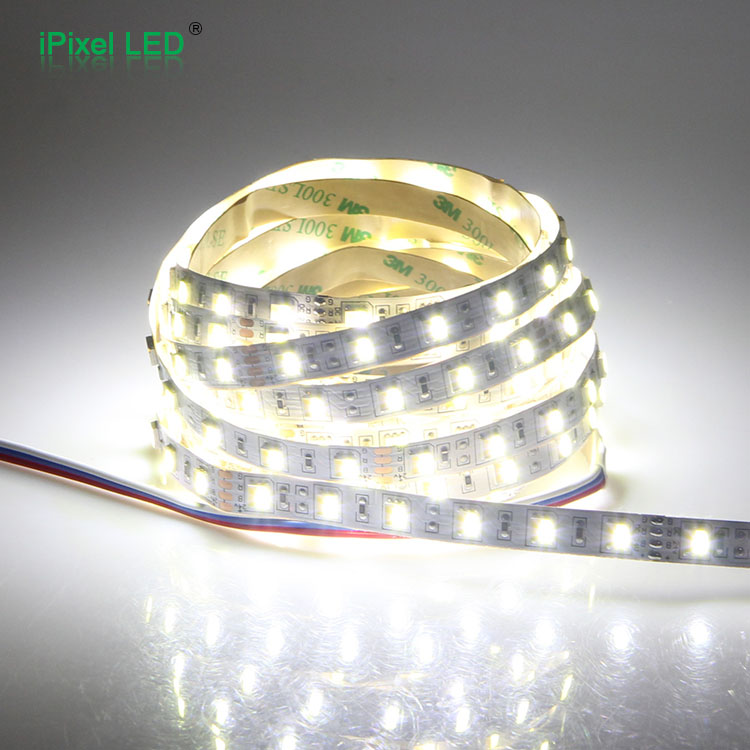

SMD5050 CCT Adjustable LED Strip – 60 LEDs/m, DC24V
-CCT color Adjustable LED strip with 60pcs of 5050
2 in 1 LED chips
-FPC in white color with 8mm Width, 2 Ounce copper
-Cut-able every 6LEDs & 100mm
-All soldering Pads are very large, allowing you to
easily cut and reconnect
-DC24V constant voltage operation

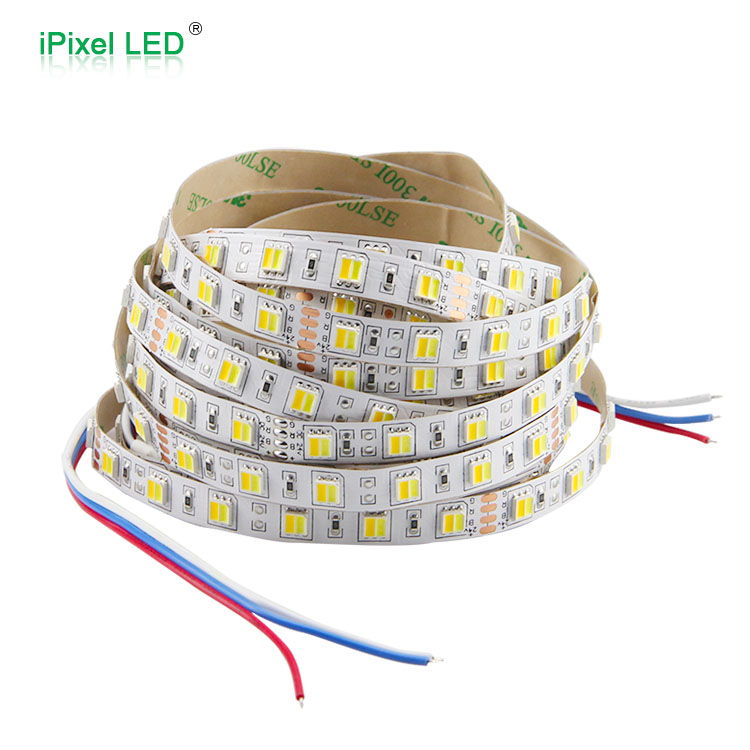

-Both ends have 3pin bare wires for powering
-3M tape attached on backside of FPC, 5 meters per reel,
-3 different waterproof types IP64, IP65, IP67
-Only standard color temperatures are available
DC24V60LEDs/m10mm WidchCCTIP20/IP64/IP65/IP67
Overview & Key Features
Series Overview
This SMD5050 CCT adjustable LED strip is designed for projects that require adjustable white light using 2-in-1 SMD5050 dual white LEDs. It provides warm white and cool white output in one LED package, allowing the light color to be adjusted by a compatible CCT controller.

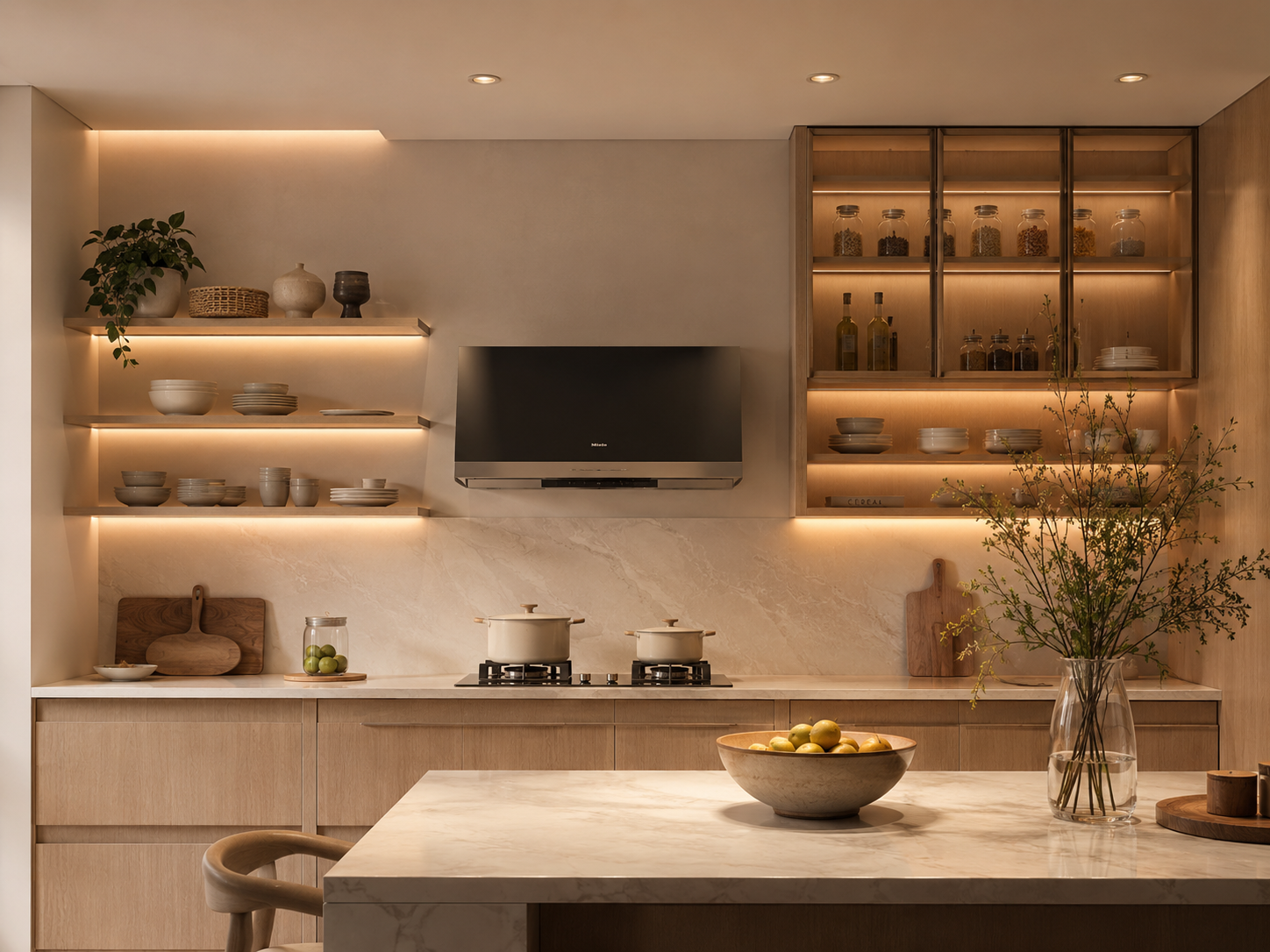

With DC24V constant voltage input, 60 LEDs per meter, 100mm cutting unit and multiple waterproof options, this LED strip is suitable for cabinet lighting, decorative lighting, display fixtures, aluminum profile lighting and OEM lighting assemblies.
Key Features
- SMD5050 2-in-1 dual white LED chips.
- CCT adjustable white light: WW 2800–3200K + W 6000–6500K.
- DC24V constant voltage operation.
- 60 LEDs/m standard layout.
- 9.6W/m power design.
- 100mm / 6LED cutting unit.
- PWM control with compatible CCT controller.
- Both ends with 3-pin bare wires for powering.
- 3M adhesive backing on FPC.
- IP20 / IP64 / IP65 / IP67 options.
- 5m standard roll length.
- Suitable for cabinet, display, decorative and OEM lighting projects.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Product Type | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S010060CC2PZ | SMD5050 60LEDs/m | DC24V | 9.6W/m | SMD5050 CCT Adjustable LED Strip | 10mm | WW 2800–3200K + W 6000–6500K | 100mm / 6LED | W: 408 lm/m, WW: 382 lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need SMD5050 dual‑white LED platform | Choose S010060CC2PZ |
| Need adjustable warm white + cool white | Suitable, WW 2800–3200K + W 6000–6500K |
| Need standard CCT control | Use compatible CCT controller |
| Need DC24V system | Suitable |
| Need low‑density, traditional large‑package LEDs | SMD5050 / 60 LEDs/m is suitable |
| Need longer cutting pitch | 100mm / 6LED cut |
| Need waterproof version | IP64 / IP65 / IP67 options available |
| Need higher uniformity or shorter cutting pitch | Consider SMD2835 or SMD2216 high-density CCT series |
| Need finer light output | Consider SMD2216 CCT series |
| Need higher color rendering index | Confirm CRI90 customization by project |

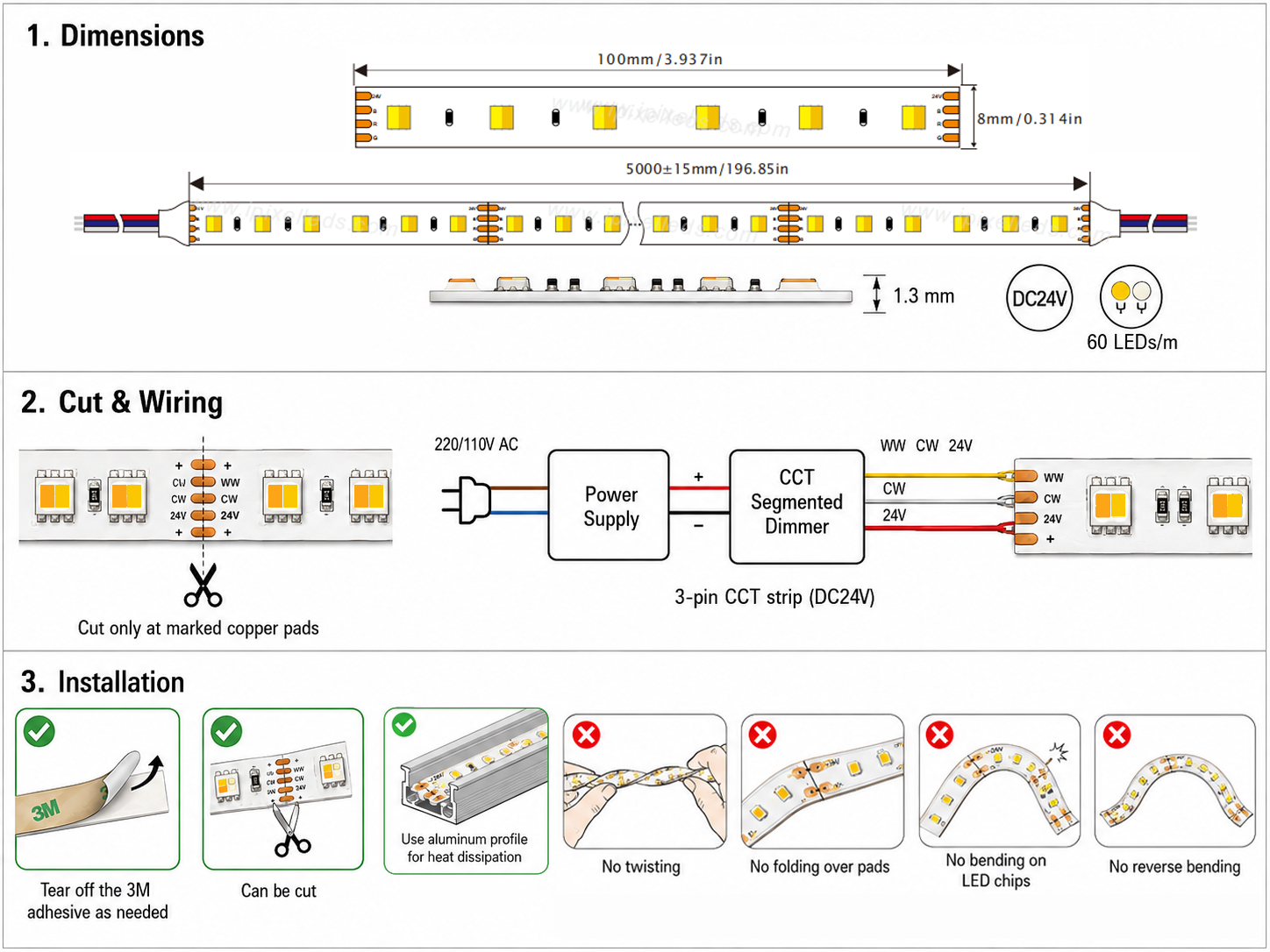

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Standard input |
| LED Type | SMD5050 2-in-1 dual white | WW + W in one LED package |
| CCT | WW 2800–3200K + W 6000–6500K | Only standard color temperatures are shown in datasheet |
| Control | PWM CCT control | Requires compatible CCT controller |
| IP Rating | IP20 / IP64 / IP65 / IP67 | IP process may affect size, CCT and luminous flux |
| Length | 5m standard roll / custom length | Based on project requirement |
| Cable | 3-pin bare wire / custom wire length | For OEM assembly |
| Connector | Bare wire / terminal / custom connector | Confirm by installation method |
| Mounting | 3M tape / aluminum profile / clips | Aluminum profile recommended for protection and diffusion |
| Packing | Reel / antistatic bag / carton / OEM packing | Project packing can be discussed |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
The standard CCT range is WW 2800–3200K + W 6000–6500K.
A compatible PWM CCT controller should be used.
The strip can be cut every 100mm / 6 LEDs.
