A CCT adjustable LED strip uses warm white and cool white LEDs to adjust the white light color temperature through a compatible controller.

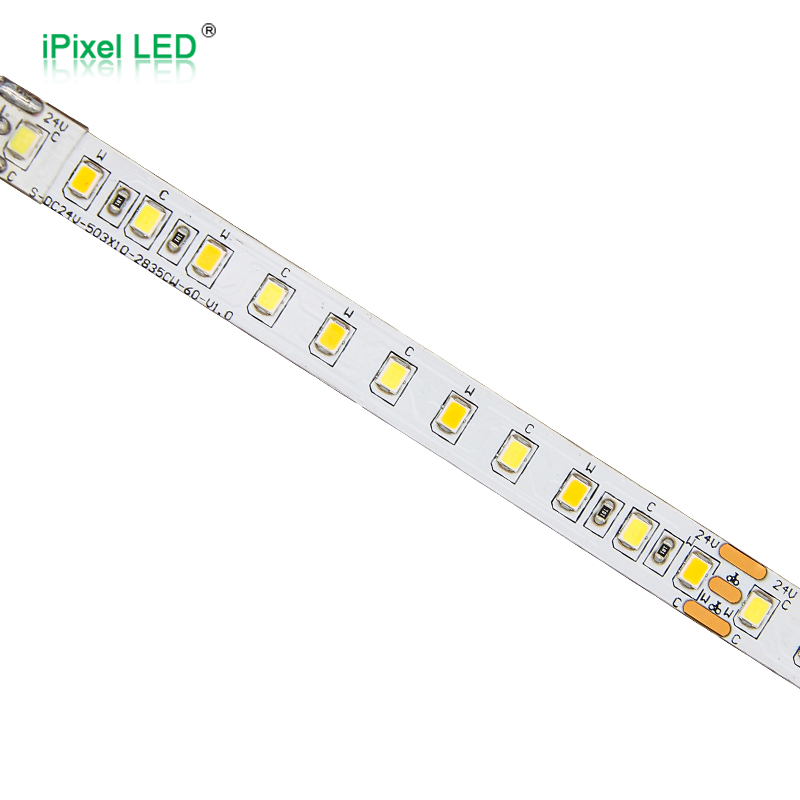

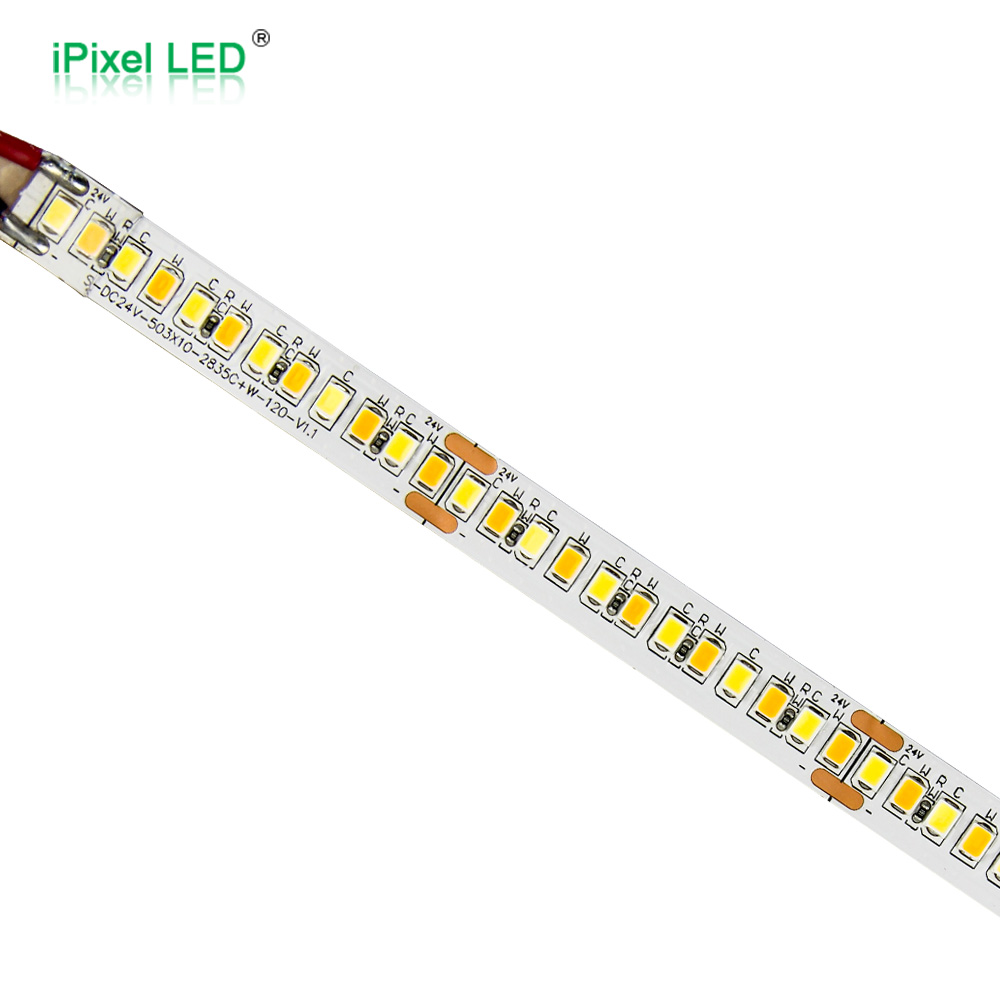

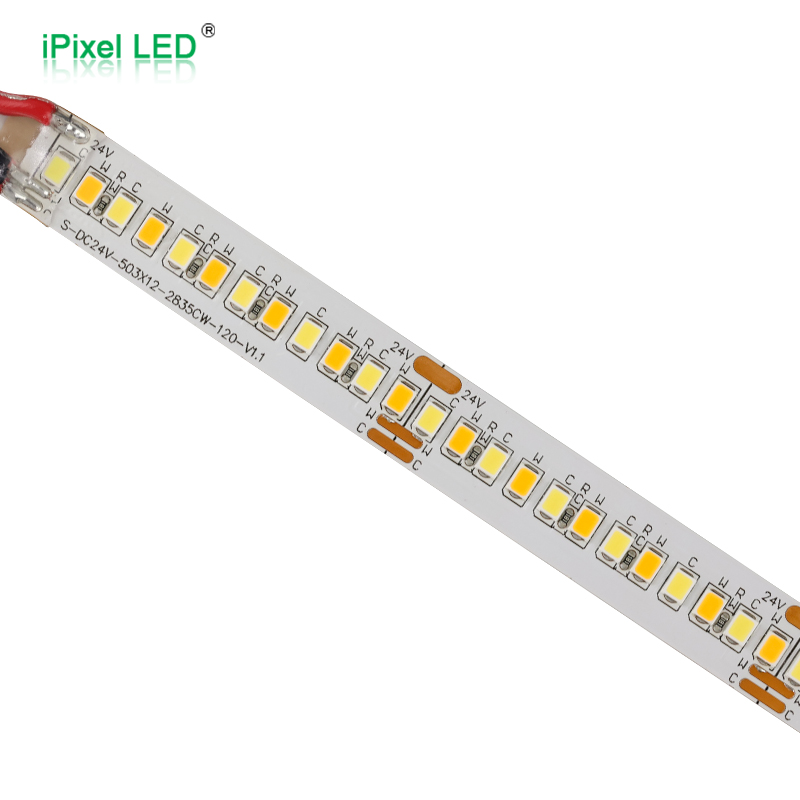

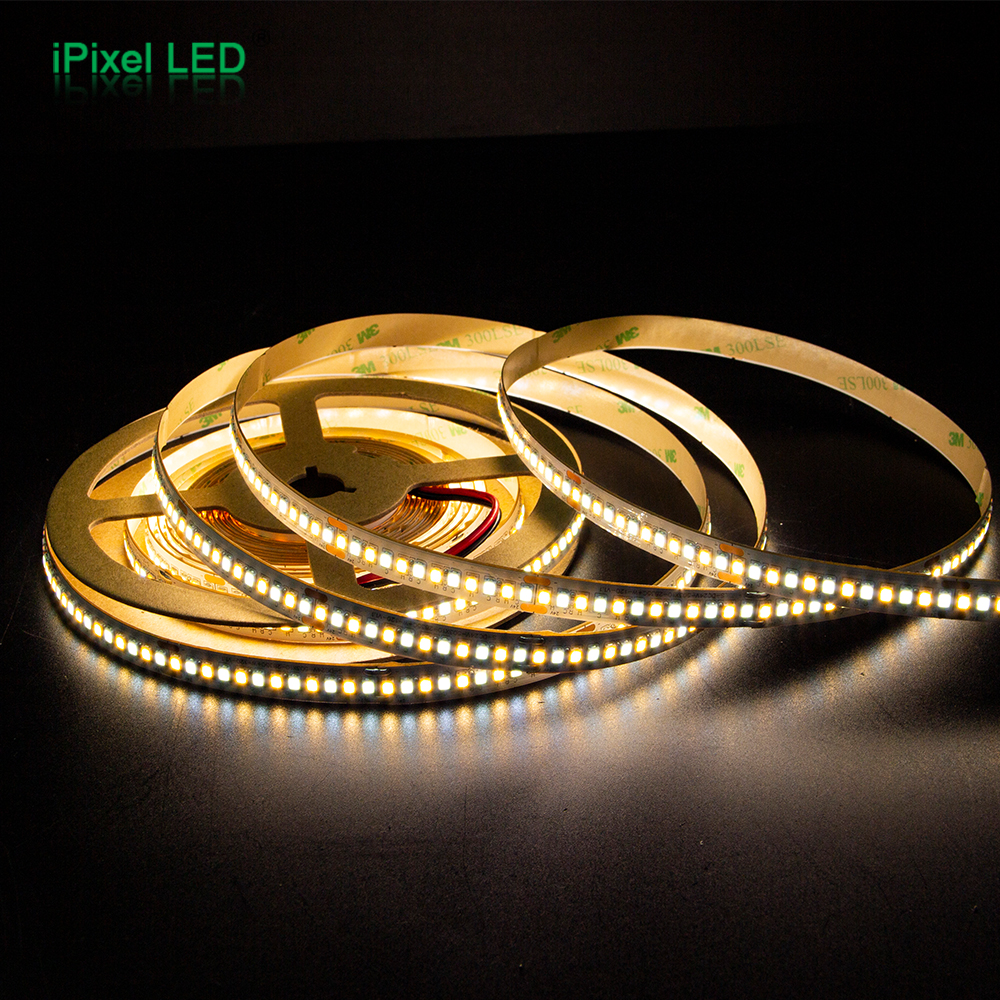

SMD2835 CCT Adjustable LED Strip Series
-High density CCT color Adjustable LED strip has
120/240pcs 2835 LEDs
-With 10/12mm Width, 2 Ounce copper
-Cut-able every 12LEDs & 50/100mm
-All soldering Pads are very large, allowing you to
easily cut and reconnect
-DC24V constant voltage operation
-3M tape attached on backside of FPC
-5 meters per reel,
-Waterproof types IP20, IP65
DC24V120/240LEDs/m10/12mm WidchCCTIP20/IP64/IP65/IP67
Overview & Key Features
Series Overview

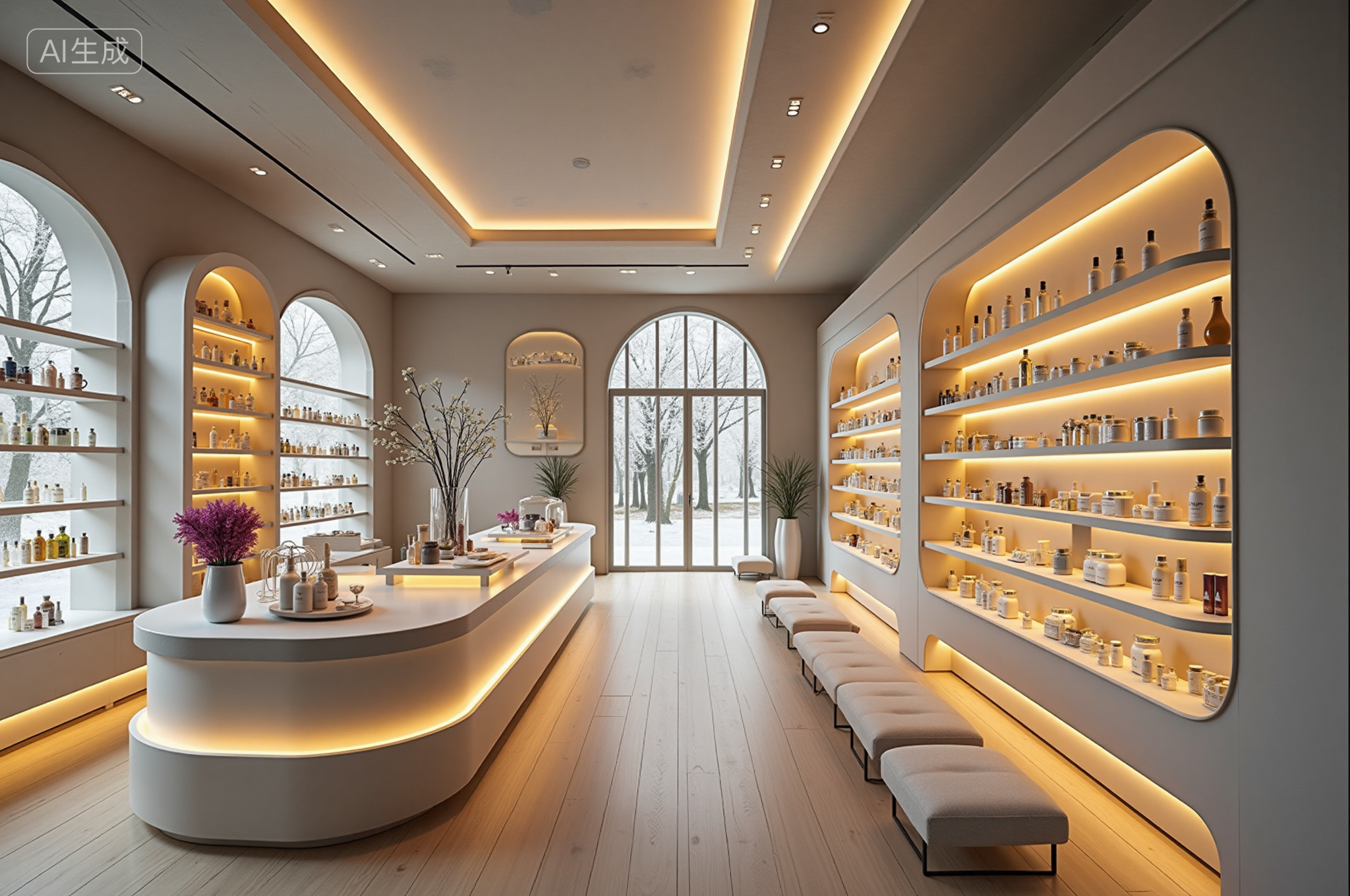

- This SMD2835 CCT adjustable LED strip series is designed for projects that require adjustable white light between warm white and cool white. It supports DC24V constant voltage input and PWM dimming control, making it suitable for cabinet lighting, furniture lighting, retail display lighting, aluminum profile lighting and OEM lighting assemblies.
- The series includes standard 3-wire CCT versions and a 2-wire CCT special version. Standard versions use +24V / CW / WW wiring, while the 2-wire version requires a compatible 2-wire CCT controller. Different LED densities, PCB widths and power levels are available for brightness, uniformity and installation requirements.
Key Features
- SMD2835 dual white LED platform for tunable white lighting.
- CCT range: 2800–3200K + 6000–6500K.
- DC24V constant voltage operation.
- PWM control for CCT adjustment and dimming.
- 60+60 and 120+120 LEDs/m options.
- 10mm and 12mm PCB options.
- Large soldering pads for easier cutting and reconnection.
- Both ends with bare wire output for project installation.
- 3M adhesive backing on FPC.
- IP20 / IP65 options for dry or protected environments.
- 2-wire CCT special version available for compatible controller systems.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CCT | PCB Width | Cutting Length | Lumen/m | Control | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| S010120BC2PZ | SMD2835 60+60LEDs/m | DC24V | 10W/m | 2800–3200K + 6000–6500K | 10mm | 100mm / 12LED | CW 440lm / WW 438lm | PWM, 3-wire CCT | IP20 / IP65 |
| S010240BC2PZ(2W) | SMD2835 120+120LEDs/m | DC24V | 10W/m | 2800–3200K + 6000–6500K | 10mm | 50mm / 12LED | CW 1155lm / WW 1096lm | PWM, 2-wire CCT | IP20 / IP65 |
| S012240BC2PZ | SMD2835 120+120LEDs/m | DC24V | 19.2W/m | 2800–3200K + 6000–6500K | 12mm | 100mm / 12LED | CW 900lm / WW 901lm | PWM, 3-wire CCT | IP20 / IP65 |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a standard CCT tunable light strip | S010120BC2PZ |
| Need higher density and shorter cutting pitch | S012240BC2PZ |
| Need a 2‑wire CCT control system | S010240BC2PZ (2W) |
| Need low power, basic cabinet lighting | S010120BC2PZ, 10W/m |
| Need higher brightness or denser light output | S012240BC2PZ, 120+120 LEDs/m |
| Installation space is a standard 10mm profile | S010120BC2PZ or S010240BC2PZ (2W) |
| Installation space allows 12mm PCB | S012240BC2PZ |
| Need IP65 protection | All three models are available with IP65, but end sealing and wiring methods must be confirmed |
| Customer already has a standard CCT controller | Choose the 3‑wire CCT version |
| Customer requires 2‑wire CCT control | Must select the 2‑wire special version and match it with a dedicated controller |

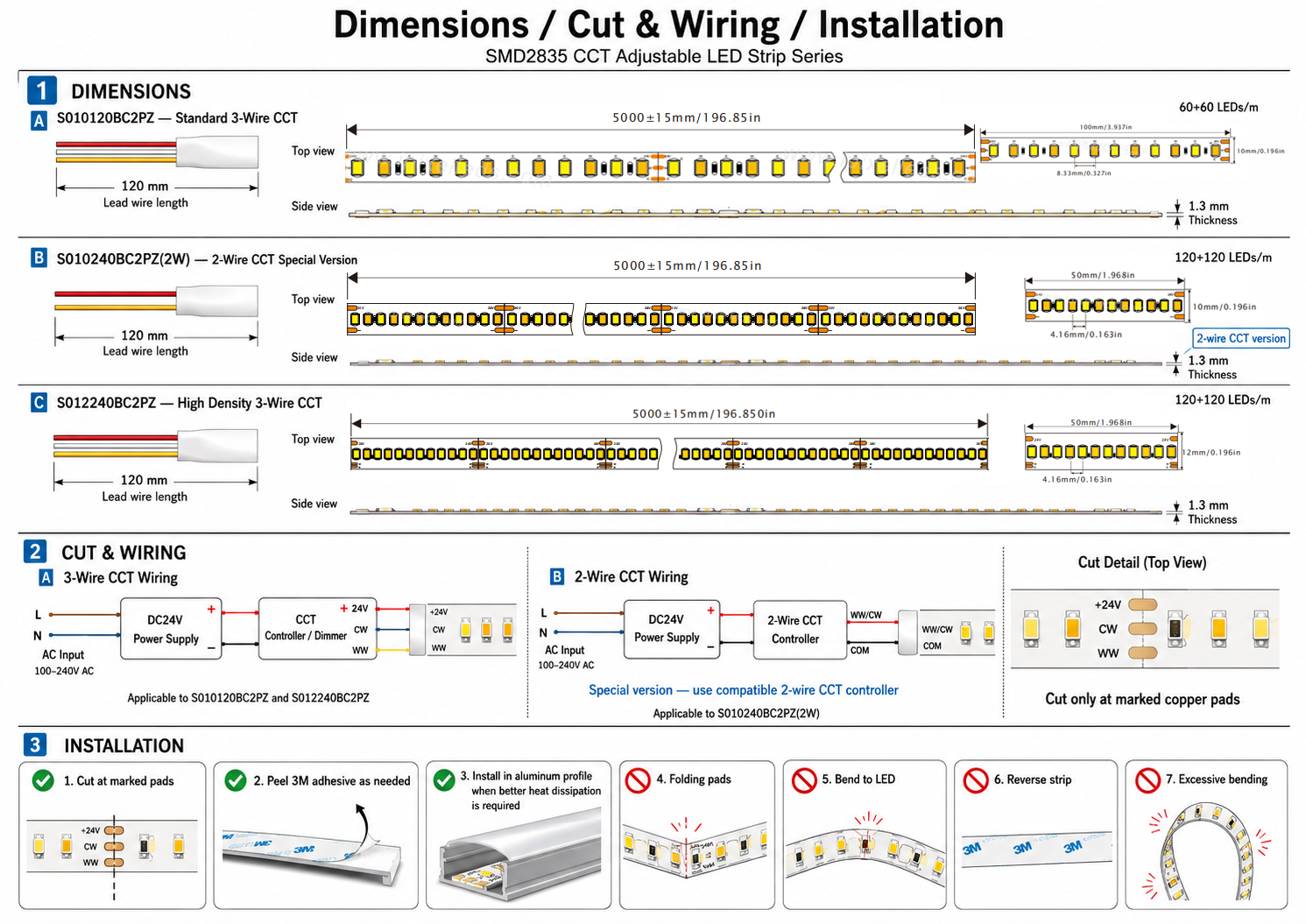

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Standard for this series |
| LED Type | SMD2835 | Dual white / CCT adjustable |
| PCB Width | 10/12mm | Choose by installation space and power requirement |
| CCT | 2800–3200K + 6000–6500K | Other CCT range can be evaluated by project |
| Control | PWM CCT dimming | 3-wire or 2-wire version must be confirmed |
| Wiring | 3-wire CCT / 2-wire CCT | Controller compatibility is critical |
| LED Density | 60+60 / 120+120 LEDs/m | Higher density improves uniformity |
| IP Rating | IP20 / IP65 | IP65 requires suitable sealing and cable treatment |
| Length | 5m standard / custom length | Based on project requirement |
| Connector | Bare wire / terminal / custom connector | For OEM assembly |
| Mounting | 3M tape / aluminum profile / clips | Aluminum profile recommended for higher power version |
| Packing | Reel / antistatic bag / carton / OEM packing | Project packing can be discussed |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
3-wire CCT versions normally use +24V, CW and WW channels. The 2-wire version requires a compatible 2-wire CCT controller and should not be connected as a standard 3-wire CCT strip.
S010120BC2PZ is suitable for standard CCT cabinet and furniture lighting.
S012240BC2PZ is more suitable because it uses 120+120 LEDs/m and 12mm PCB.
