IP67Pro is suitable for outdoor and wet-location protection under the defined product structure. IP68 is a project-based waterproof structure and should be confirmed according to sealing, connector, installation and water exposure conditions.

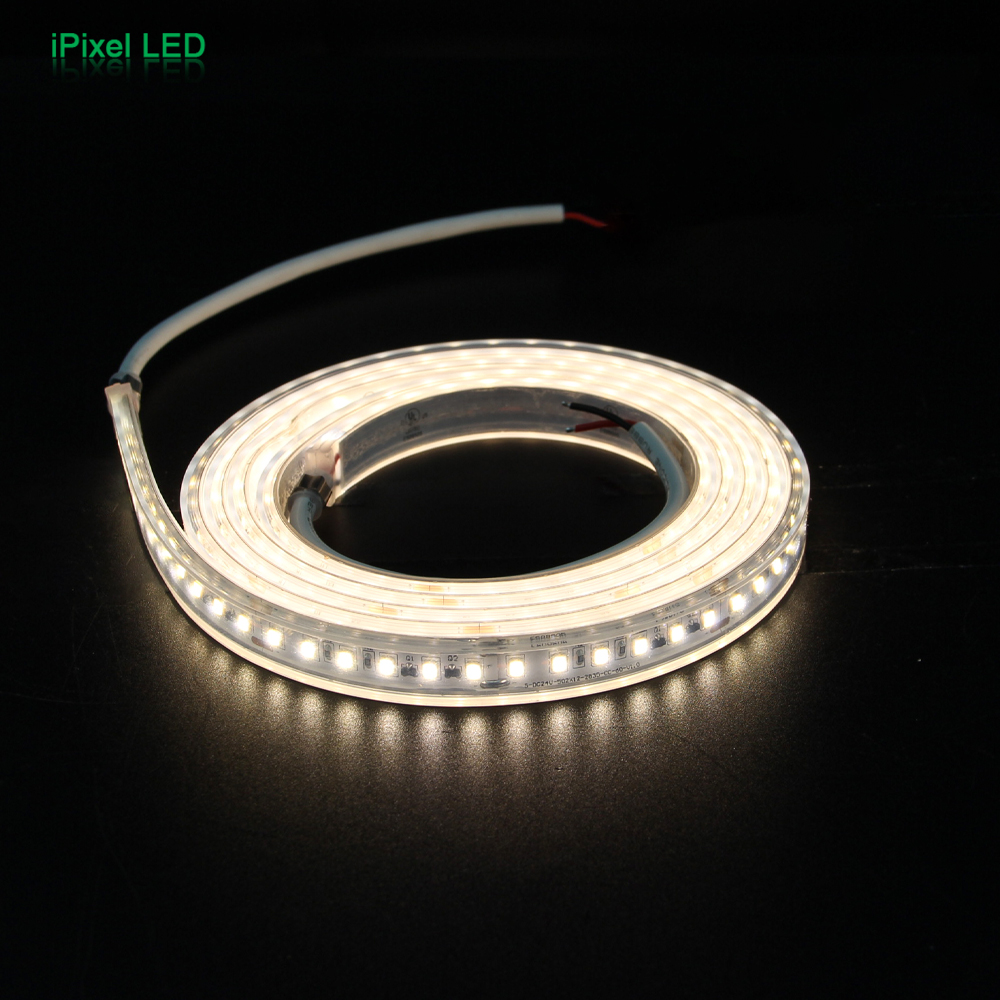

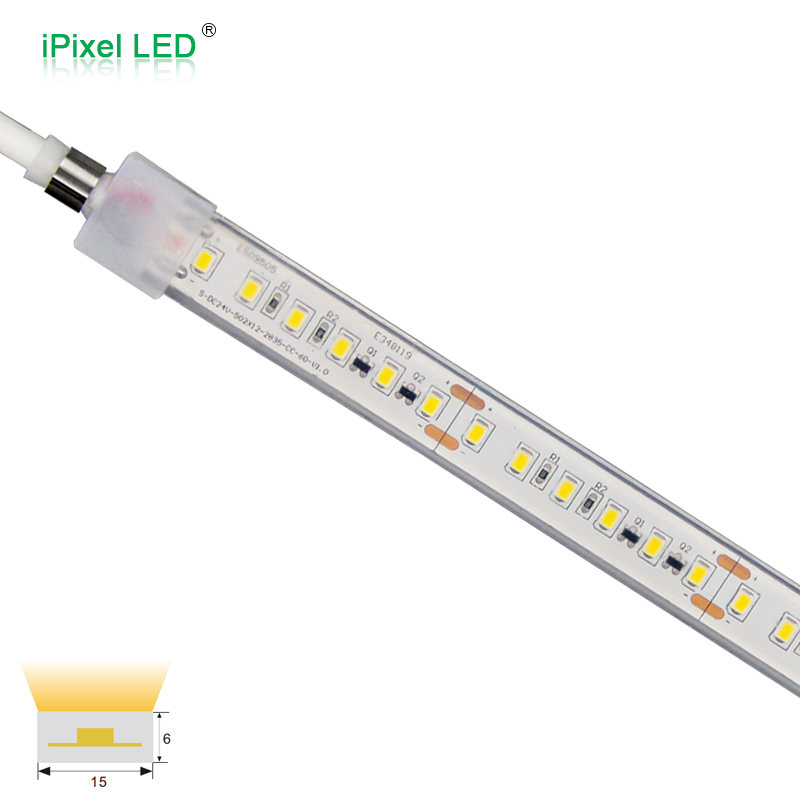

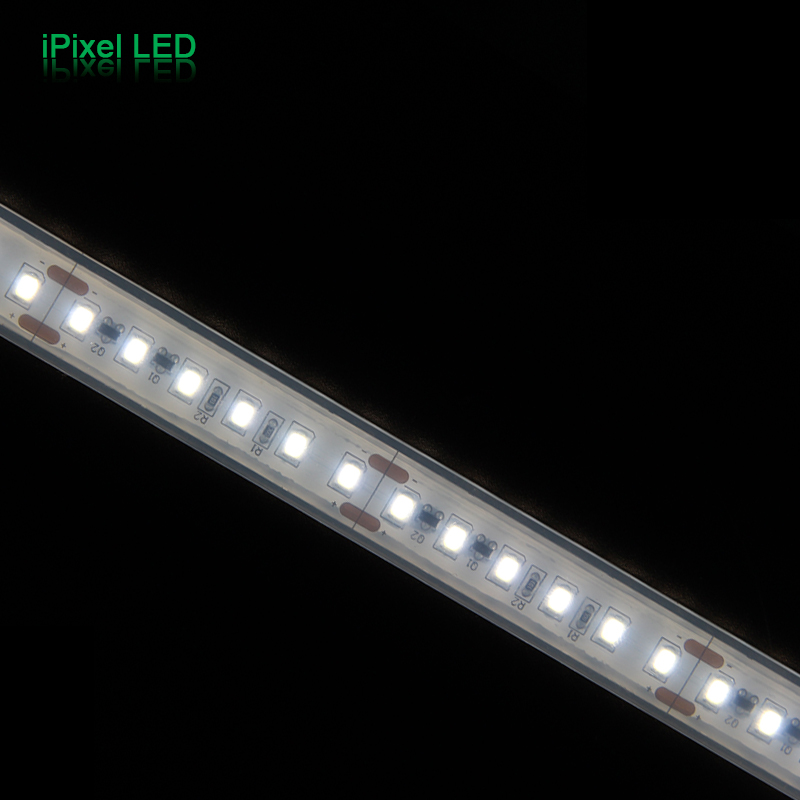

IP67Pro Constant current SMD 2835 LED Strip 120LEDs/m DC24V

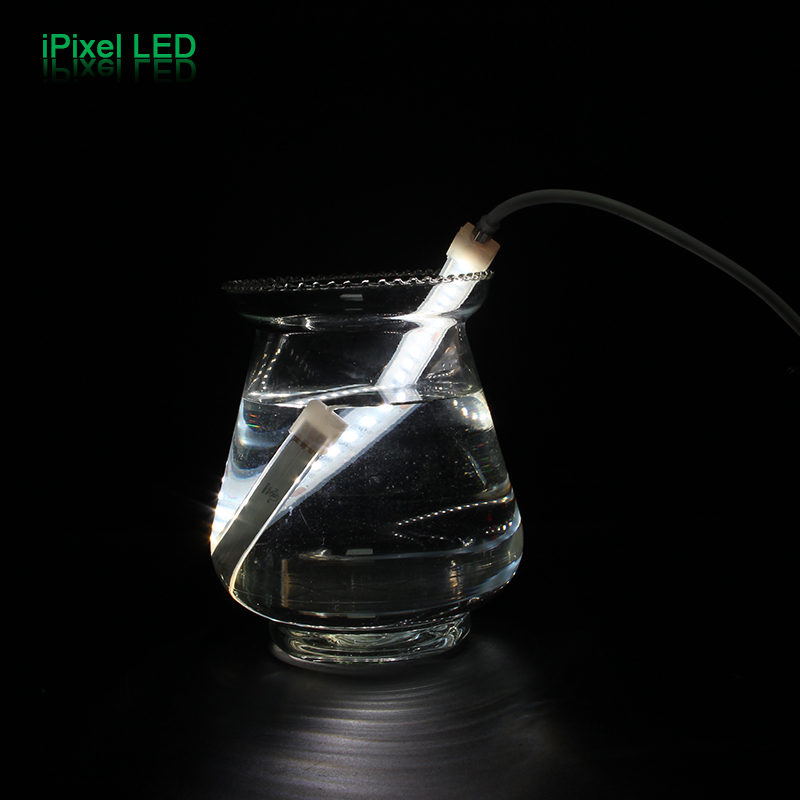

- Use solid extrusion technology for sealing thoroughly, achieving a waterproof rating of IP67Pro.
- It adopts triode constant current, can be super-long connection, the brightness with in 15M is consistent even
if one end is powered, suitable for large projects
- DC24V constant current, cuttable every 6LEDs/50mm
- The CCT of white can be customized as warm white or pure white or cool white
DC24V120LEDs/m12mm WidchConstant currentIP67Pro
Overview & Key Features
Series Overview
This waterproof constant current LED strip is designed for outdoor, wet-location and large project lighting applications where water protection, stable brightness and reliable wiring are important. It uses a solid extrusion sealing structure and supports IP67Pro waterproof performance, with an IP68 project version available according to installation requirements.
The DC24V constant current design helps improve brightness consistency over longer runs. According to the product description, brightness can remain consistent within 15m under suitable single-end power conditions, making it suitable for large-scale linear lighting projects. The strip can be cut every 50mm / 6 LEDs and supports 3000K, 4000K and 6500K white light options.
Key Features
- 3mm ultra-thin flexible PCB for narrow grooves and compact installation spaces.
- Single color white light with 3000K / 4000K / 6500K options.
- SMD2835 and SMD3014 versions for different voltage and density requirements.
- DC12V and DC24V options depending on model.
- 120 LEDs/m and 224 LEDs/m versions for different brightness and uniformity needs.
- CRI ≥90 for better color rendering.
- Standard 5m roll length, custom length available.
- Flexible strip structure, suitable for curved or tight installation areas.
- IP20 standard, with IP64 / IP65 / IP67 options available on the SMD2835 version.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | CRI | PCB Width | CCT | IP Rating | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S012120BC1HZ(N1506) | SMD2835 120LEDs/m | DC24V | 10W/m | Ra≥90 | 12mm | 3000K / 4000K / 6500K | IP67Pro | 1198 lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a standard outdoor waterproof light strip | IP67Pro version |
| Need long‑term damp conditions or higher waterproof requirements | IP68 project version, confirm structure and installation |
| Need brightness consistency over long distances | DC24V constant current version |
| Need quick connection on site | Male / female waterproof connector system |
| Need different cable outlet directions | Straight outlet / side outlet / bottom outlet |
| Need to cut and then install | 50mm / 6LED cutting unit |
| Need warm white, natural white, or cool white | 3000K / 4000K / 6500K options |
| Used in outdoor architecture, landscapes, and linear light channels | Confirm IP rating, connector position, and drainage method |
Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| IP Rating | IP67Pro / IP68 project option | Confirm according to environment and installation method |
| Waterproof Structure | Solid extrusion sealing | For outdoor and wet-location applications |
| Outlet Direction | Straight outlet / side outlet / bottom outlet | Shown in dimension drawing |
| Connector | Male input / female output / waterproof connector | Connector protection is critical for outdoor use |
| Voltage | DC24V | Constant current design |
| CCT | 3000K / 4000K / 6500K | Other CCT can be customized by project |
| Length | 5m standard / custom length | Cut every 50mm / 6LED |
| Cable | Custom cable length | Based on installation route |
| Mounting | Aluminum profile / pre-installation slot / clips | Outdoor installation should consider drainage and fixation |
| Accessories | Aluminum profile, waterproof connector, extension cord, power supply, dimmer/controller | Listed in the datasheet accessory section |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. The DC24V constant current design helps improve brightness consistency. The datasheet states that brightness can remain consistent within 15m under suitable single-end power conditions. Final wiring should be confirmed by project.
The strip can be cut every 50mm / 6 LEDs.
The datasheet shows male input, female output, waterproof connector, straight outlet, side outlet and bottom outlet options.
