CCT adjustable changes between warm white and cool white. Dim-to-warm becomes warmer when brightness is reduced, creating a more comfortable atmosphere.
SMD2216 Dual White LED Strip Series
This single color COB LED strip series is designed for smooth, dot-free linear lighting in compact installation spaces. It includes 2.7mm super narrow COB, 5mm slim COB, and 8mm side-emitting COB options, covering DC5V, DC12V and DC24V systems.
Available in 3000K / 4000K / 6500K white options, the series supports flexible cut lengths, IP20 / IP65 protection options, and customized roll lengths for OEM lighting projects. The uploaded datasheets show front-emitting models from 2.7mm to 5mm PCB width and side-emitting models in 8mm PCB width, with operating voltage options from DC5V to DC24V.
DC24V224/240LEDs/m8/10mm WidchCCTIP20/IP64/IP65/IP67
Overview & Key Features
Series Overview
This SMD2216 dual white LED strip series is designed for lighting projects that require adjustable white light or warm dimming effects. The series includes a standard CCT adjustable version for changing between warm white and cool white, and a dim-to-warm version for creating a warmer atmosphere as brightness is reduced.

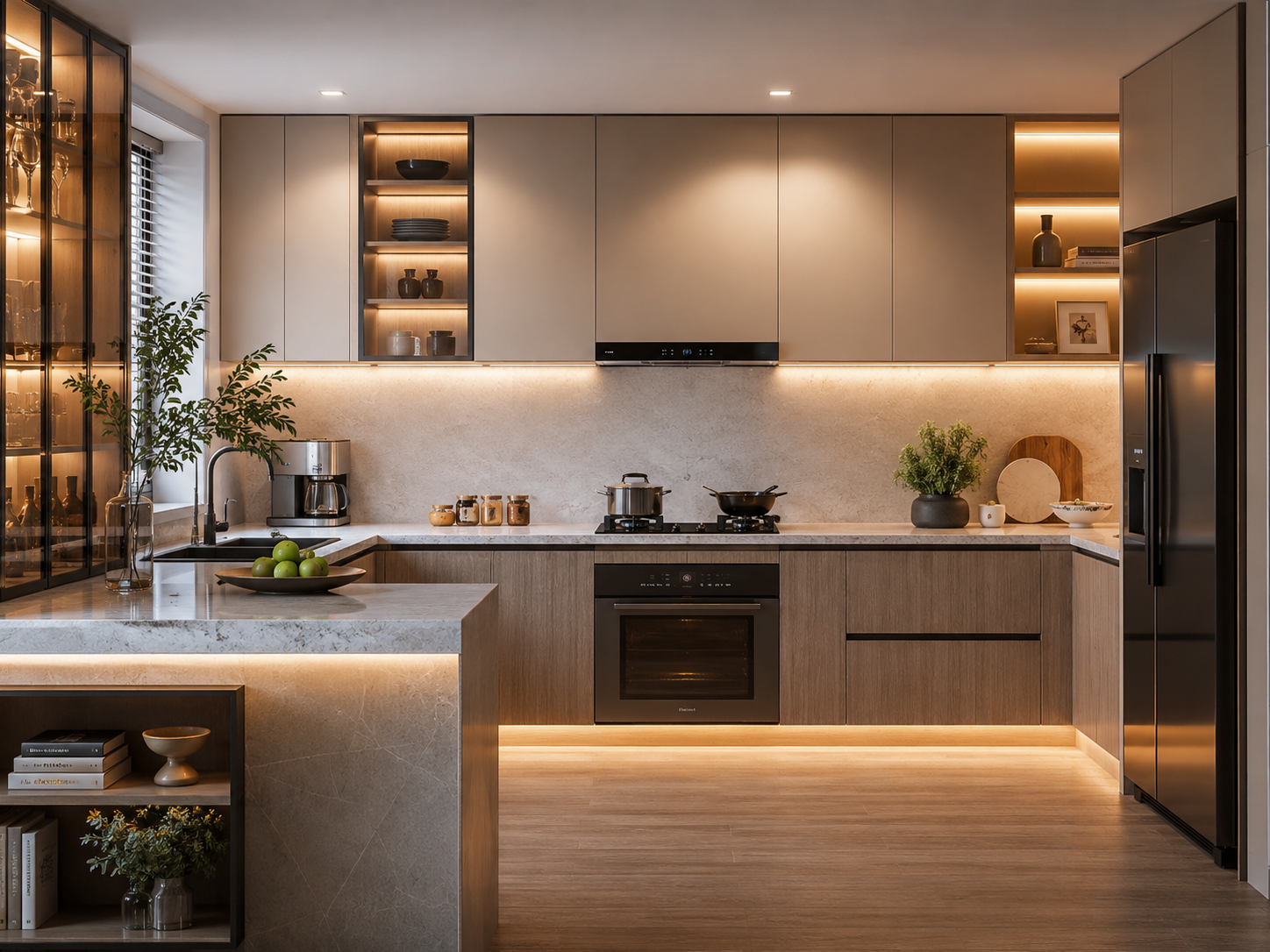

With compact SMD2216 LED packages, DC24V input, high LED density and flexible PCB structure, this series is suitable for cabinet lighting, furniture lighting, display fixtures, aluminum profiles, hotel lighting and OEM lighting assemblies.
Key Features

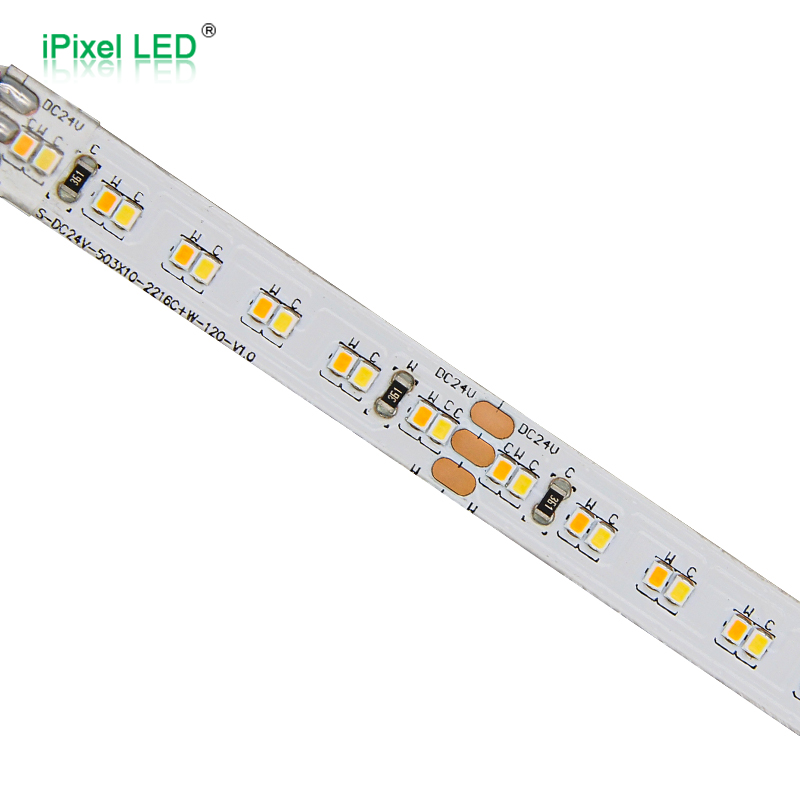

- SMD2216 LED package for compact, high-density dual white layouts.
- Two white-light solutions: CCT adjustable and dim-to-warm.
- DC24V constant voltage input.
- PWM dimming control.
- 8mm and 10mm PCB options for different installation spaces.
- IP20 / IP65 options for dry or protected indoor environments.
- 5m standard roll length, custom length available.
- Large solder pads for easier cutting and reconnection.
- 3M adhesive backing on the FPC.
- Suitable for cabinet, furniture, display and atmosphere lighting projects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S010240XC2PZ | SMD2216 120+120LEDs/m | DC24V | 20W/m | CCT Adjustable Version | 10mm | 3000K + 6500K | 50mm / 12LED | CW 832lm / WW 782lm |
| S008224XC2PZ | SMD2216 112+112LEDs/m | DC24V | 8W/m | Dim-to-Warm Version | 8mm | 1800K–3000K | 62.5mm / 14LED | W 818lm / WW 180lm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need to adjust between warm white and cool white | S010240XC2PZ |
| Need 3000K + 6500K CCT control | S010240XC2PZ |
| Need dim‑to‑warm function (light gets warmer as it dims) | S008224XC2PZ |
| For hotels, bedrooms, and ambient lighting | S008224XC2PZ |
| Need higher power and higher brightness | S010240XC2PZ, 20W/m |
| Narrow installation space | S008224XC2PZ, 8mm PCB |
| Standard 10mm profile installation | S010240XC2PZ |
| Needs to be controlled by a traditional dimmer | S008224XC2PZ |
| Needs a standard CCT controller | S010240XC2PZ |
| Need IP65 protection | Both models are available with IP65, but end sealing and wiring methods must be confirmed |
Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC24V | Both models |
| LED Type | SMD2216 | Compact high-density dual white LED package |
| Color Type | CCT adjustable / Dim-to-warm | Select by project lighting effect |
| Color Range | 3000K+6500K / 1800K–3000K | Depends on model |
| PCB Width | 10mm / 8mm | Match profile or groove size |
| Power | 20W/m / 8W/m | Select by brightness and thermal requirement |
| Control | CCT controller / traditional dimmer | Controller must match wiring method |
| IP Rating | IP20 / IP65 | Confirm sealing and cable treatment before order |
| Length | 5m standard / custom length | Based on project requirement |
| Connector | Bare wire / terminal / custom connector | For OEM assembly |
| Mounting | 3M tape / aluminum profile / clips | Aluminum profile recommended for higher power version |
| Packing | Reel / antistatic bag / carton / OEM packing | Project packing can be discussed |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
S010240XC2PZ is suitable for standard CCT adjustable applications.
S008224XC2PZ is suitable for dim-to-warm applications.
No. S010240XC2PZ uses a CCT controller, while S008224XC2PZ can work with a traditional dimmer or compatible dim-to-warm dimmer. The wiring method must be confirmed before order.
No. These are low-voltage LED strips and must be connected through a suitable DC power supply. Direct connection to AC110V or AC220V will damage the LED strip.
