5M

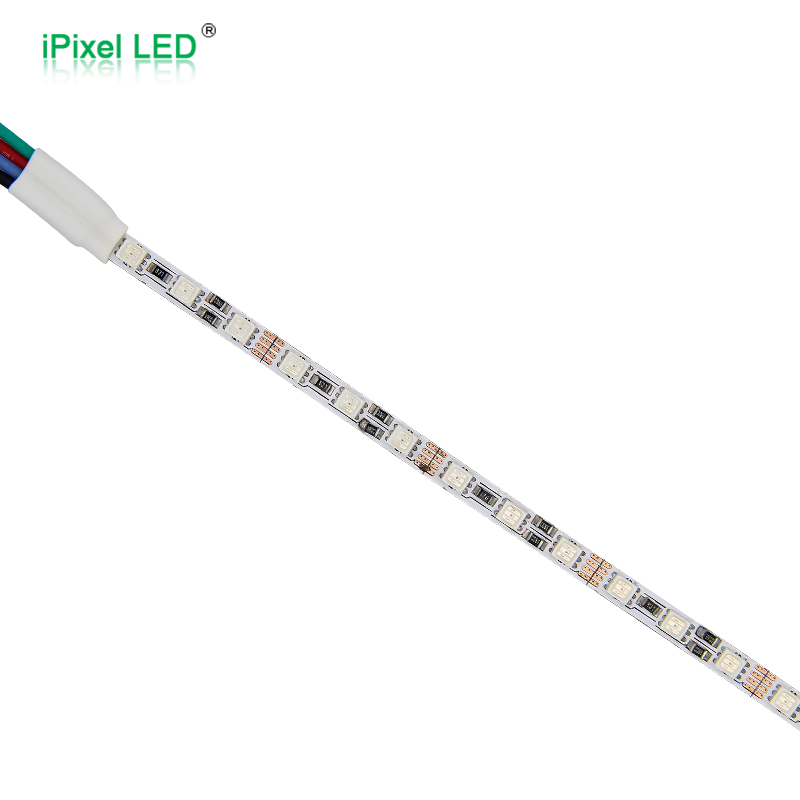

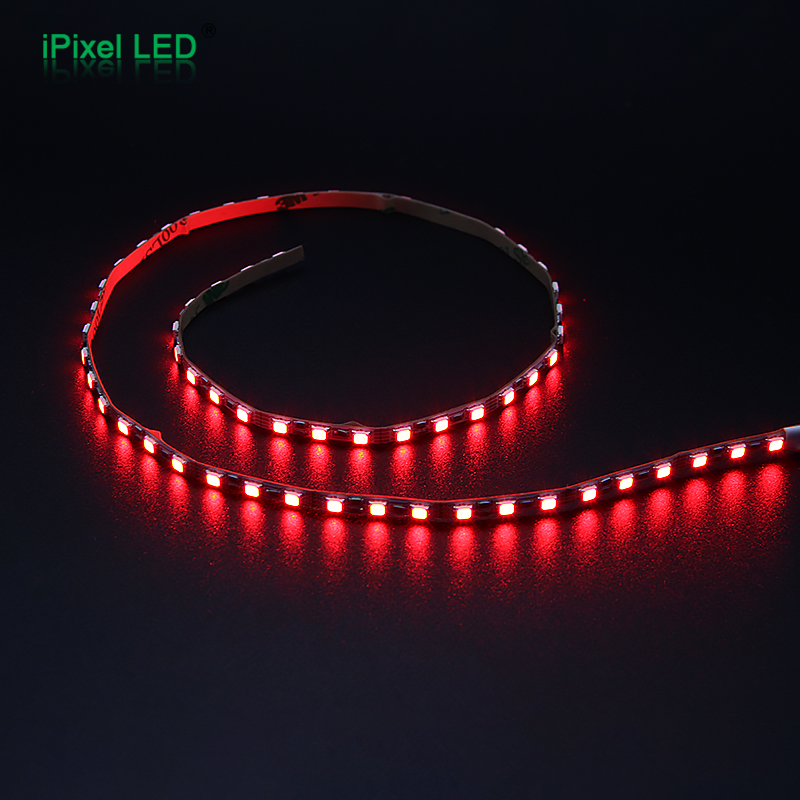

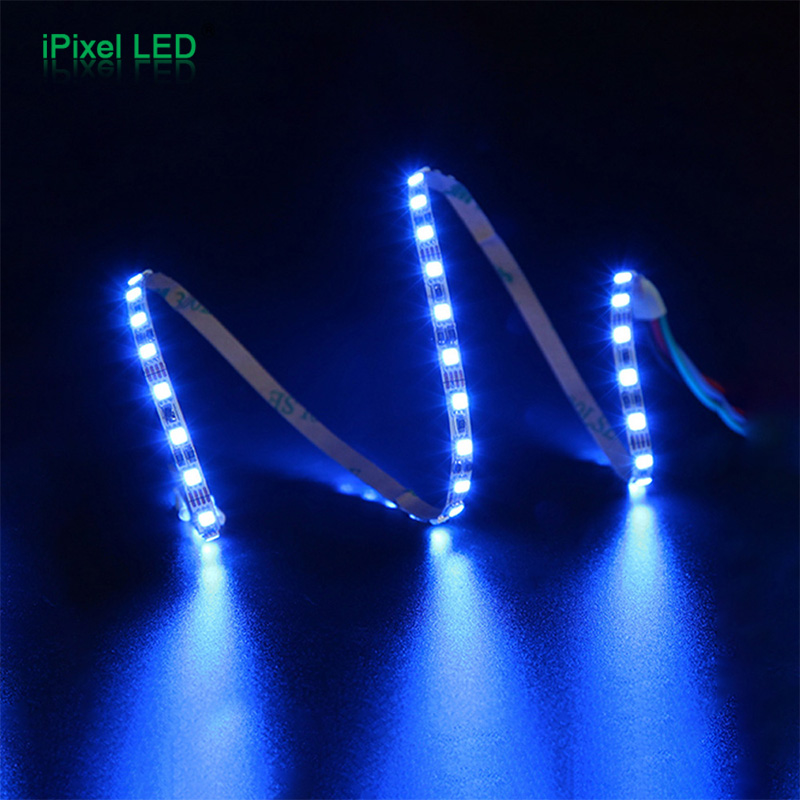

RGB SMD2835 Ultra Narrow LED Strip
-This led strip with 120pcs SMD2835 RGBLED chips
-Use PWM controller
-Input voltage is DC12V
-Flexible PCB, PCB color is white

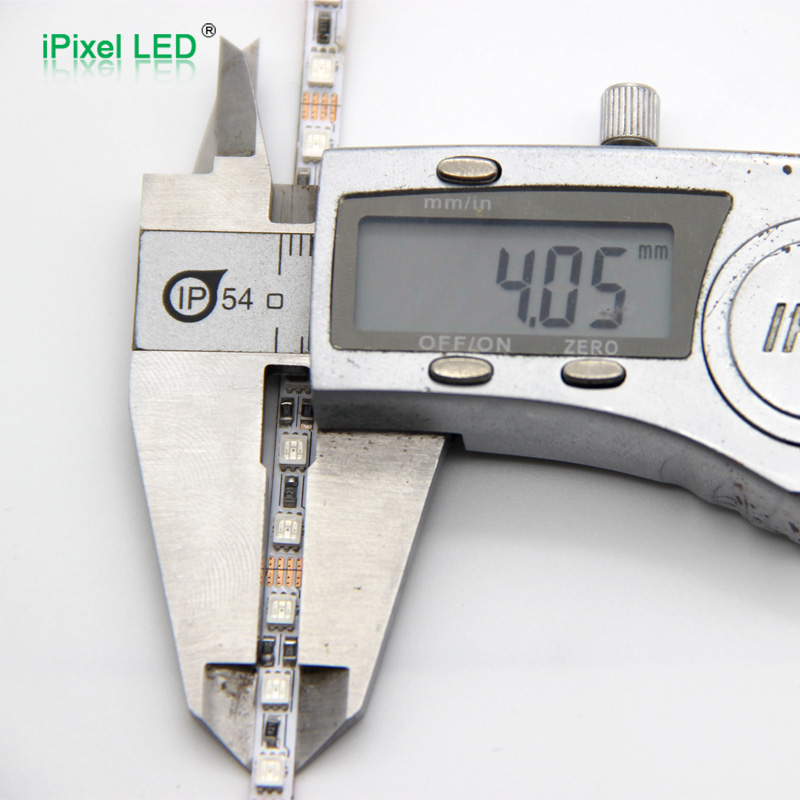

-Ultra narrow PCB with 4mm
-Standard 5M/roll, length can be customized
DC12V120LEDs/m4mm WidchRGBIP20/IP65PWM
Series Overview & Key Features
Series Overview

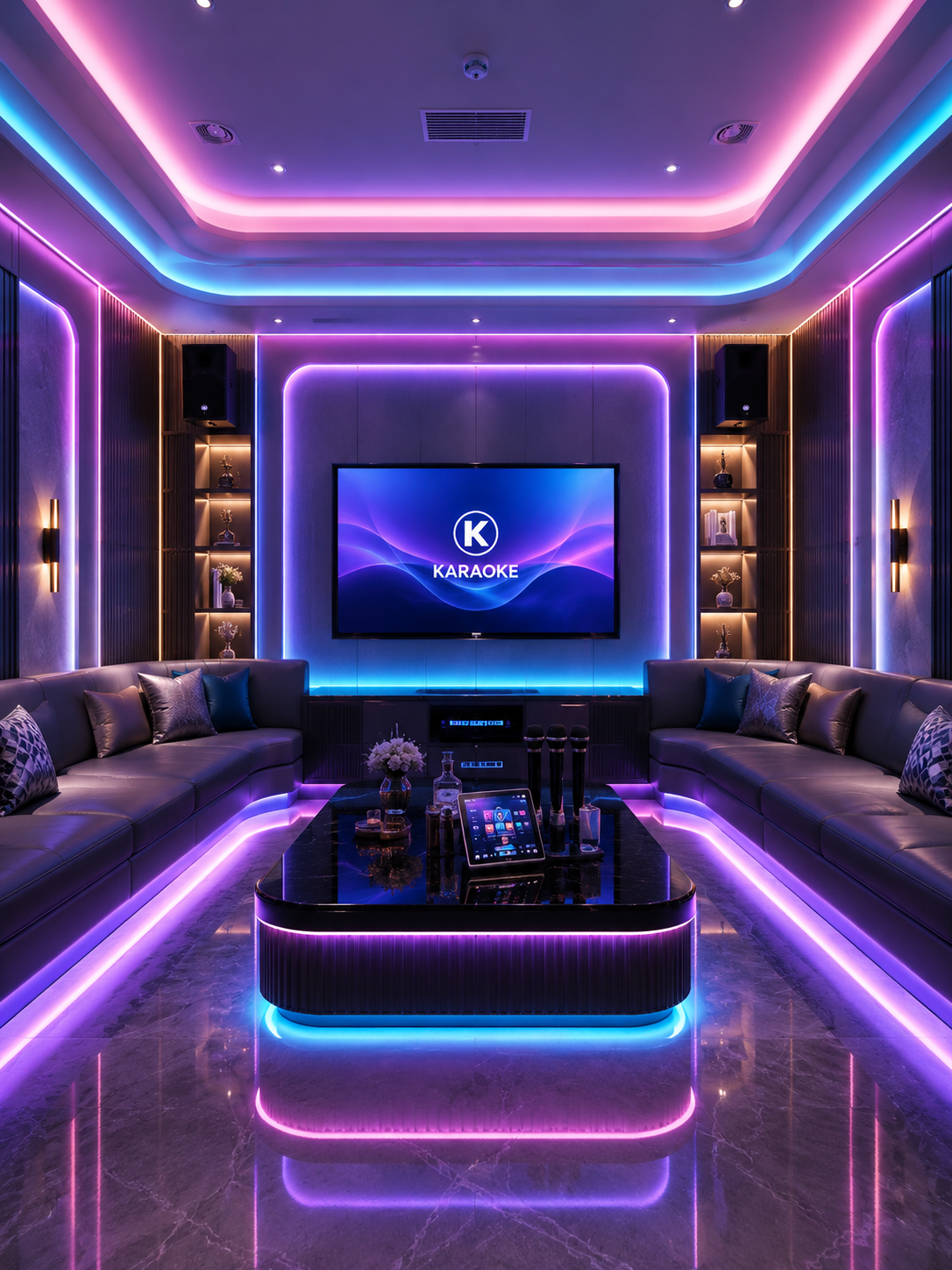

This RGB flexible LED strip features 120 SMD2835 chips per meter on a 4mm ultra-narrow white FPC. Powered by DC12V with PWM control, it delivers vivid dynamic color in tight spaces – ideal for accent lighting, backlighting, and retail displays.
Key Features
- High-density RGB – 120 LEDs/m with dedicated wavelengths (R 620–625 / G 520–525 / B 460–465 nm) for pure, consistent colors.
- Ultra-slim & flexible – 4mm wide FPC, bends easily for curved or narrow installations.
- Cuttable – Every 25 mm (3 LEDs) for custom lengths.
- Low power & smooth dimming – 7.6W/m, supports flicker‑free PWM dimming.
- Wide beam – 120° angle ensures even light distribution.
- Protection options – IP20 (indoor) or IP65 (splash‑proof) for dry or humid environments.
- Wide temperature range – -25~60°C; standard 5m reel with custom lengths available.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | Cutting Length | IP Rating | Lumen/m | Length |
|---|---|---|---|---|---|---|---|---|---|
| S004120BB3PZ | 120 | 12 | 7.6W | PWM | 4mm | 25mm/3LED | IP20 | R:66 G:238 B:60lm | 5M |
| S004120BB3PZ | 120 | 12 | 7.6W | PWM | 4mm | 25mm/3LED | IP65 | R:66 G:238 B:60lm | 5M |
How to Choose
| Application Need | Recommended Voltage | Recommended IP | Notes |
|---|---|---|---|
| Indoor Dry Environment | DC12V | IP20 | Cost-effective for indoor use |
| Indoor Damp Environment | DC12V | IP65 | Silicone coating for moisture resistance |
| Outdoor /Harsh Environment | DC12V | IP65/IP68 | Higher IP level for harsh condittion |
| Commercial/Display | DC12V | IP20/IP65 | High density for better visual effect |

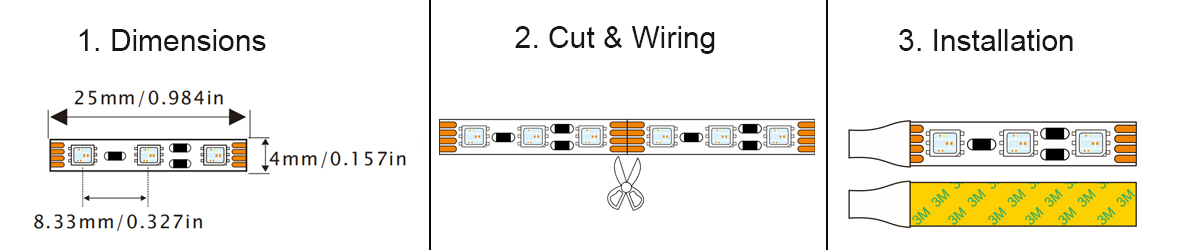

Structure & Installation
Protection, Customization & Options
| ltem | Options/Detalls | Remarks |
|---|---|---|
| IP Rating | IP20/IP65 | IP65 Sllicone Coating. |
| Color Option | RGB | Other CCts avollable onrequest. |
| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom length avallable. |
| PC Coler | White | Other PCB color available (Black). |
Related Items
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Vending & Kiosk Lighting – AC Safety, Anti-Vibration Harness & Serviceability
Coffee Machine Lighting – Heat/Steam/Chemical Resistance & Glare-Controlled Downlight

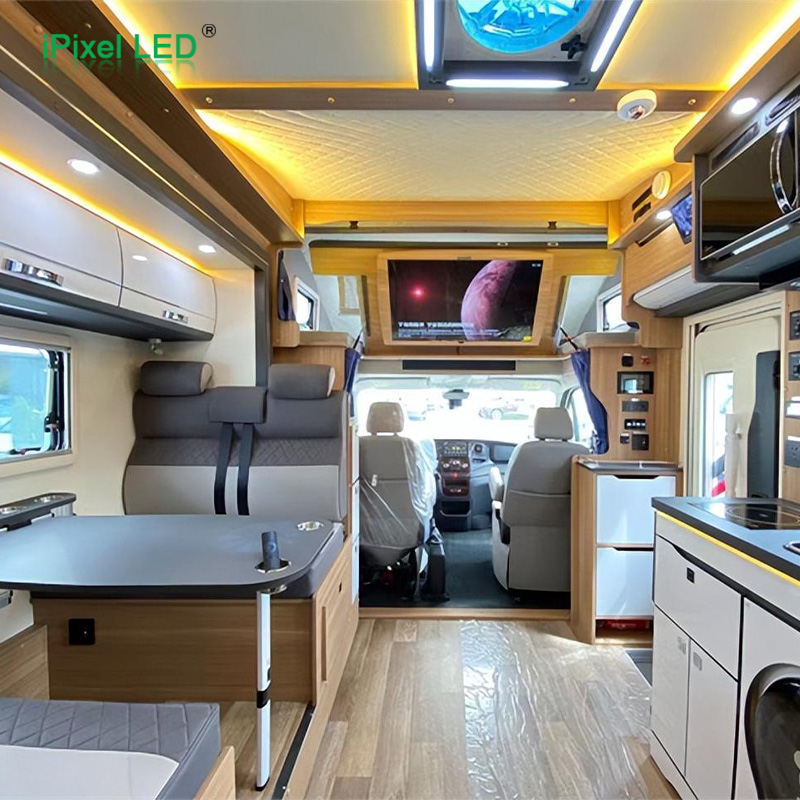

RV Lighting – 12V Robustness, Vibration Resistance & Safe Installation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
